Description

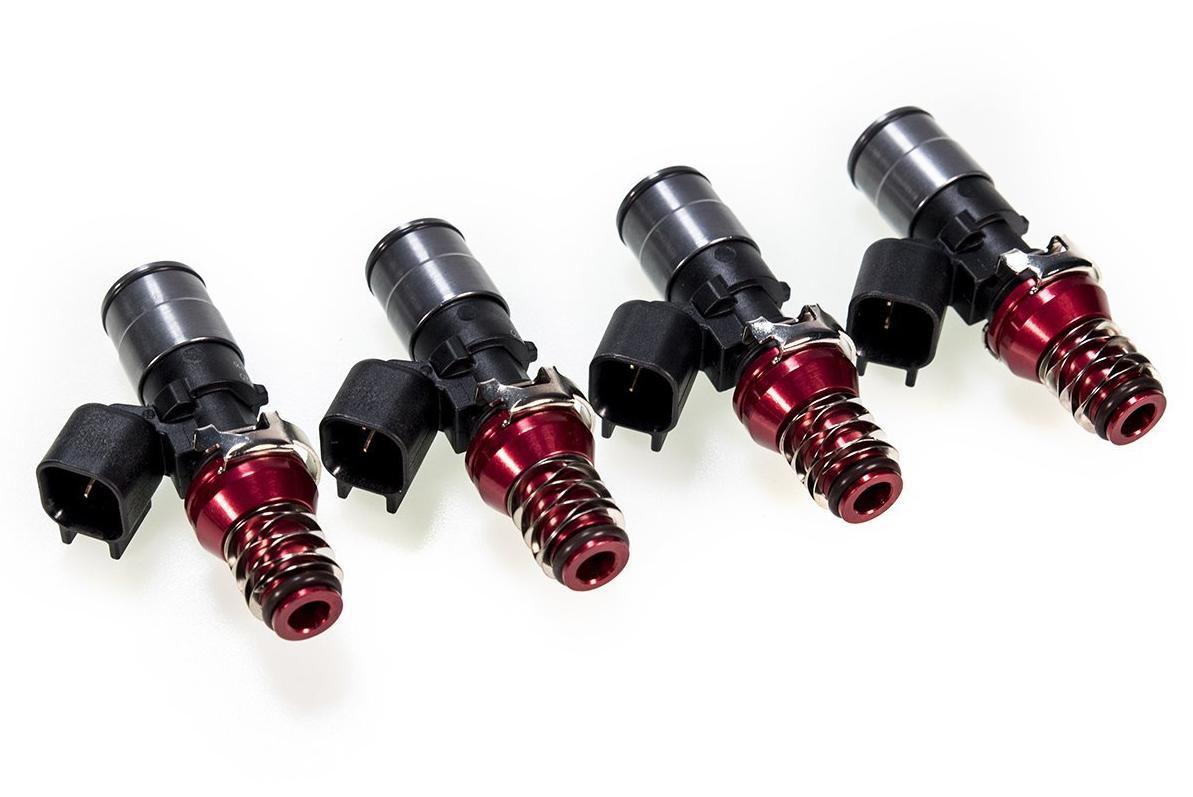

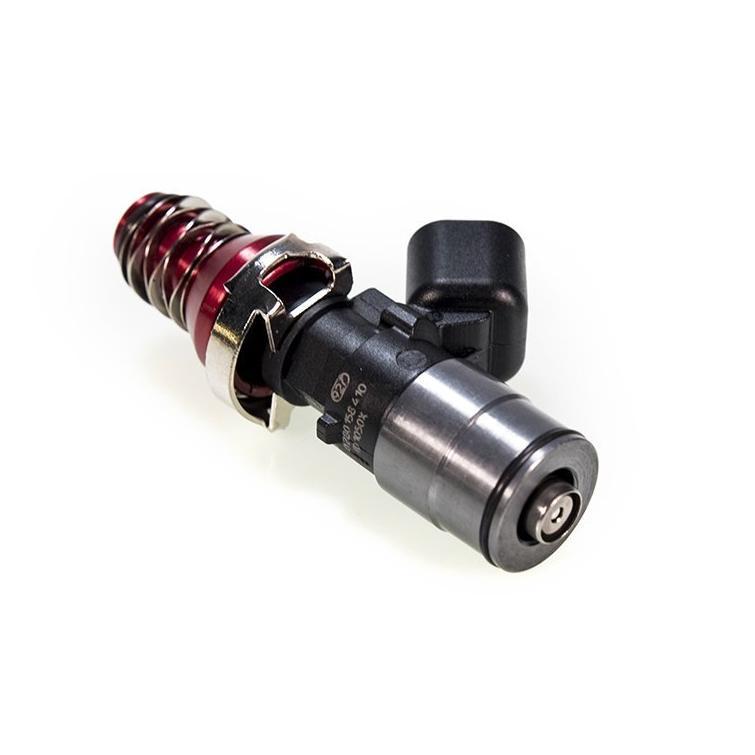

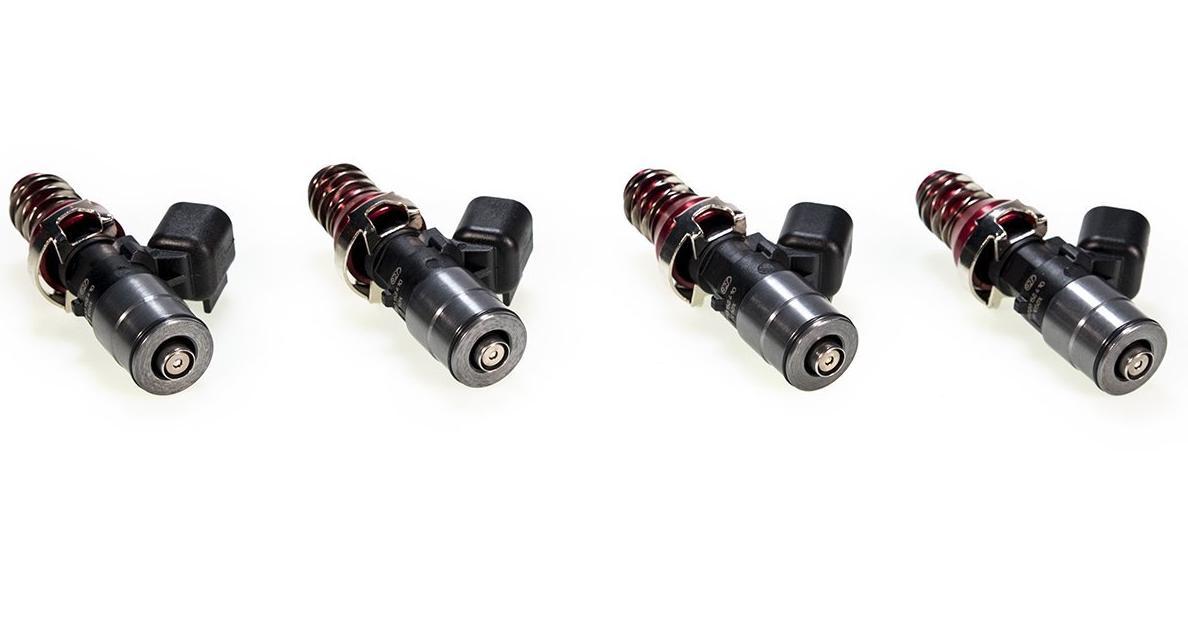

Injector Dynamics ID1050x 1065cc Fuel Injectors for Mitsubishi Evo X (2008–2015)

Firstly, Buy Evo X fuel injectors from Injector Dynamics. Upgrade your Mitsubishi Lancer Evolution X fuel system with Injector Dynamics ID1050x fuel injectors. Designed for performance-focused engines, these injectors deliver a nominal flow rate of 1065cc/min at 43.5 psi. They provide additional fueling capacity for modified 4B11T engines while maintaining the low-flow characteristics needed for smooth idle and everyday drivability.

The ID1050x series was developed with Bosch Motorsport and features corrosion-resistant internal components, a compact body, and an improved internal flow path. These features make the injectors a strong option for Evo X owners building a reliable street, track, or high-performance setup.

Why Choose Injector Dynamics ID1050x Fuel Injectors?

Choosing the right injectors is important when increasing engine power. The fuel system must supply enough fuel for your setup without sacrificing consistent operation at lower engine loads.

The Injector Dynamics ID1050x 1065cc injectors offer a balance of flow capacity, fuel compatibility, and precise control. They suit builds that need more fuel than the factory injectors can provide, provided the rest of the fuel system and engine calibration are matched to the application.

Key benefits include:

• 1065cc/min nominal flow rate: Supports increased fueling demands when paired with the appropriate fuel system and tune.
• Corrosion-resistant internals: Designed to handle a wide range of fuels, including ethanol-based fuels.
• Improved internal flow path: Increases output by approximately 5% compared with the original ID1000 design without sacrificing low-flow performance.
• Compact injector body: Supports fitment across a broad range of applications.
• Stable operation: A stronger magnetic circuit supports operation at differential fuel pressures up to 10 bar.
• Replaceable inlet filter: Helps support ongoing injector maintenance.

These features make the ID1050x a practical choice for Evo X owners upgrading their fueling system for increased performance.

Designed for the Mitsubishi Evo X 4B11T

These Injector Dynamics fuel injectors are specified for the 2008–2015 Mitsubishi Lancer Evolution X, equipped with the turbocharged 4B11T engine. They are suitable for performance builds that require increased injector capacity, including setups with upgraded turbochargers and supporting fuel-system modifications.

However, injector size alone does not determine how much power an engine can safely produce. Your turbocharger, fuel pressure, fuel type, fuel pump capacity, and engine calibration all affect the final result.

Before ordering, confirm that part number 1050.48.14.14B.4 matches your vehicle and fuel-system configuration. The injector connector and lower adapter dimensions also matter when checking compatibility.

Fuel Compatibility and Flow Performance

The ID1050x injectors feature corrosion-resistant internal components designed for compatibility with known fuels, including gasoline and ethanol-based fuels such as E85. This makes them useful for builds that may use different fuel blends.

Their nominal flow rate is 1065cc/min at 3.0 bar (43.5 psi), measured using gasoline at 52°C (125°F). Actual flow changes with differential fuel pressure, so this figure should be treated as a reference specification rather than a fixed output under every operating condition.

The injectors also support a maximum differential fuel pressure of 10 bar (145 psi). This provides flexibility for suitable performance fuel systems, but all components must remain within their specified operating limits.

Installation and ECU Tuning

Correct installation and calibration are essential when upgrading to larger injectors. The engine control unit needs accurate injector characterization data to manage fuel delivery across different engine speeds and loads.

After installation, have a qualified tuner configure the ECU using the appropriate Injector Dynamics data for this exact injector model. Proper calibration helps maintain stable idle, predictable throttle response, and suitable air-fuel ratios under boost.

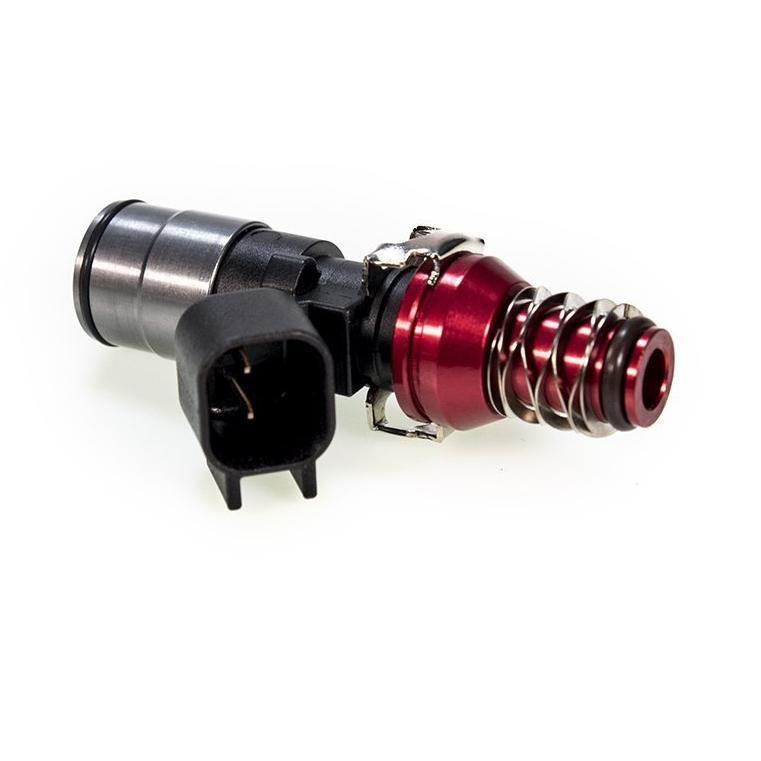

Check the connector and adapter requirements before purchasing. This part number uses a USCAR electrical connector and a 14mm black lower adapter. Plug-and-play adapters may be offered separately or as a selected option, so confirm exactly what is included with your order. Do not assume that plug-and-play adapters are supplied with every version.

Product Specifications

• Brand: Injector Dynamics
• Model: ID1050x
• Part number: 1050.48.14.14B.4
• Vehicle fitment: 2008–2015 Mitsubishi Lancer Evolution X
• Engine application: 4B11T
• Nominal flow rate: 1065cc/min at 3.0 bar (43.5 psi)
• Maximum differential fuel pressure: 10 bar (145 psi)
• Electrical connector: USCAR
• Lower adapter: 14mm black
• Fuel compatibility: Designed for compatibility with known fuels, including ethanol-based fuels
• Quantity: Set of four injectors

Confirm the included hardware and adapter options with the seller before ordering, especially if you need a plug-and-play installation.

Is the ID1050x Right for Your Evo X Build?

The Injector Dynamics ID1050x is worth considering if your Evo X needs greater injector capacity for a performance-focused fuel system. Its flow rate, fuel compatibility, and low-flow performance make it suitable for a range of modified street and motorsport applications. For the best results, select injectors based on your engine’s power goals, fuel choice, and complete fuel-system specifications. Pair them with a suitable fuel pump and professional ECU calibration to help your 4B11T run consistently. Upgrade your Mitsubishi Evolution X with Injector Dynamics ID1050x fuel injectors and choose the correct adapter configuration for your build.

Buy Evo X fuel injectors from Injector Dynamics, ID1050x 1065cc injectors for 2008–2015 Mitsubishi Lancer Evolution X builds.
