Description

Radium Engineering Fuel Hanger Return Kit for Mitsubishi Evo X (2008–2015)

Firstly, Buy the Radium Evo X fuel return kit with -6AN PTFE hose and fittings. Upgrade your Mitsubishi Lancer Evolution X fuel system with the Radium Fuel Hanger Return Kit. Designed for the 2008–2015 Evo X, this kit converts the factory fuel feed line into a return line for use with a compatible Radium fuel system.

The factory return hose measures approximately 1/4 inch (6.5mm). This can become restrictive in modified fuel systems, especially when using an aftermarket fuel pump hanger and fuel pressure regulator.

Radium addresses this issue with a larger -6AN PTFE hose and the fittings needed to connect it to the factory hard line. The result is a more suitable return-line setup for performance-focused Evo X builds.

Why Choose the Radium Fuel Hanger Return Kit?

A well-designed fuel return system helps the fuel pressure regulator manage fuel pressure correctly. Restrictions in the return line can affect regulator performance, particularly in modified fuel systems.

This Radium kit provides a straightforward way to upgrade the return plumbing while reusing the factory fuel feed line.

Key benefits include:

• -6AN PTFE return hose: Replaces the restrictive factory return hose with a larger line.
• Factory line conversion: Allows the original fuel feed line to serve as the return line.
• SAE quick-disconnect fittings: Connect the kit to the factory line ends.
• Stainless steel cushion clamp: Helps secure the hose during installation.
• Radium system compatibility: Designed for use with the compatible Radium Evo X fuel hanger and fuel system components.

These features make the kit a useful addition to a modified Evo X fuel system.

How the Fuel Hanger Return Kit Works

The kit changes how fuel returns from the engine bay to the fuel tank. Instead of relying on the restrictive factory return hose, it uses a -6AN PTFE hose for the return path.

The factory fuel feed line is repurposed as part of this arrangement. Two SAE quick-disconnect male fittings connect the line to the kit, helping create a secure connection when installed correctly.

At the engine bay, the -6AN return hose connects to a compatible Radium Direct Mount Regulator when fitted to the appropriate port on a Radium fuel rail.

Please note: This is a return-line conversion kit, not a complete fuel system. Confirm that your fuel hanger, fuel rail, and regulator are compatible before ordering.

Durable PTFE Hose and Secure Fittings

Fuel hoses and fittings must handle the demands of a performance fuel system. Radium uses a -6AN PTFE hose for this return-line application.

The hose connects to the system through SAE quick-disconnect fittings. These fittings are designed to simplify installation at the factory line connections.

A stainless steel cushion clamp is also included to help secure the hose. Correct routing and secure connections are essential, so follow the manufacturer’s installation instructions and check for leaks before operating the vehicle.

Compatibility with Modified Evo X Fuel Systems

The Radium Fuel Hanger Return Kit is intended for the 2008–2015 Mitsubishi Lancer Evolution X. It is especially relevant for builds using a compatible Radium fuel pump hanger, aftermarket fuel rail, and direct-mount fuel pressure regulator.

It may be useful when upgrading the fuel pump or changing the fuel system layout. However, the kit does not include the fuel hanger, fuel rail, regulator, or fuel pump.

Check your existing setup before purchasing. If your car uses a different fuel system arrangement, confirm compatibility with Radium or your installer.

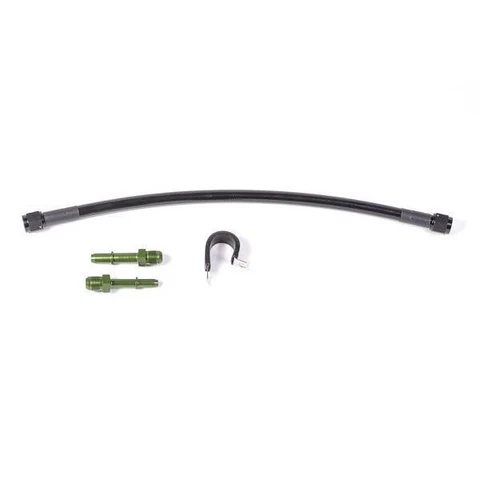

What’s Included?

The kit contains the main components needed for the return-line conversion:

• 1 × -6AN PTFE hose replacement
• 2 × SAE quick-disconnect male fittings
• 1 × stainless steel cushion clamp

No fuel pump, fuel hanger, fuel rail, or regulator is included in this package.

Product Specifications

• Brand: Radium Engineering
• Product: Fuel Hanger Return Kit
• Part number: 20-0249
• Vehicle fitment: 2008–2015 Mitsubishi Lancer Evolution X
• Hose size: -6AN PTFE
• Factory line used: Original fuel feed line, repurposed as the return line
• Fittings: Two SAE quick-disconnect male fittings
• Included hardware: Stainless steel cushion clamp
• Intended use: Fuel return-line conversion for compatible Radium Evo X fuel systems

Upgrade Your Evo X Fuel Return System

The Radium Fuel Hanger Return Kit helps address the restriction of the factory return hose in a modified Mitsubishi Evolution X fuel system. Its -6AN PTFE hose and quick-disconnect fittings provide a practical solution for compatible Radium fuel hanger and regulator setups.

Before installation, confirm compatibility with your fuel rail and regulator, and follow the manufacturer’s instructions carefully. Order the Radium Fuel Hanger Return Kit from Evomotorparts.com to upgrade the return-line plumbing on your 2008–2015 Mitsubishi Evo X.
