Description

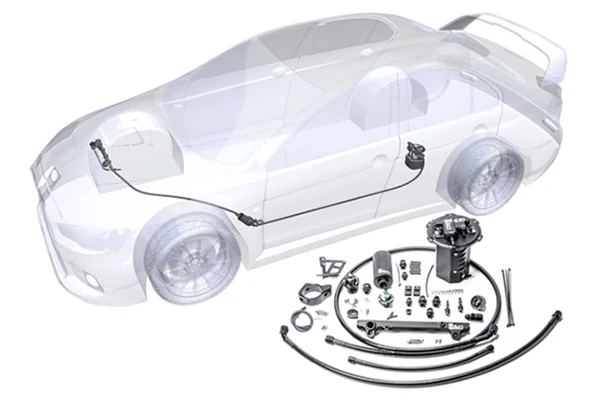

Fuel Delivery System, Mitsubishi EVO X

Firstly, Buy the Evo X fuel system by Radium Engineering for 2008–2015 Mitsubishi Evolution X models. Upgrade your Mitsubishi Lancer Evolution X with the Evo X fuel delivery system by Radium Engineering. Designed for 2008–2015 models, this system helps support modified engines that need improved fuel delivery.

The kit combines several key components, including a fuel pump hanger, fuel lines, a fuel rail, and a fuel pressure regulator. These parts work together to create a more flexible fuel system for street cars and high-performance builds.

Whether you run gasoline or E85, choosing the right fuel system is essential. This Radium Engineering setup gives you a solid foundation for upgrading your Evo X.

Why Choose This Evo X Fuel Delivery System?

The factory fuel system may become a limitation as you increase engine power. Upgraded fuel components can help provide the capacity and flexibility needed for a modified engine.

This Radium Engineering kit brings several important parts together in one package. It also allows you to choose a fuel pump configuration that matches your build.

Key benefits include:

• Improved fuel delivery: Supports modified engines with increased fuel demands.
• Flexible pump options: Choose a compatible single- or dual-pump hanger configuration.
• Upgraded fuel lines: PTFE lines provide a dedicated route for fuel delivery.
• Fuel pressure control: The included regulator helps manage fuel pressure.
• E85 compatibility: Suitable for ethanol fuel when the entire system uses compatible components.
• Integrated design: Combines essential parts to simplify your fuel system upgrade.

What’s Included in the Evo X Fuel Delivery System?

The kit combines several components to help manage fuel from the tank to the engine.

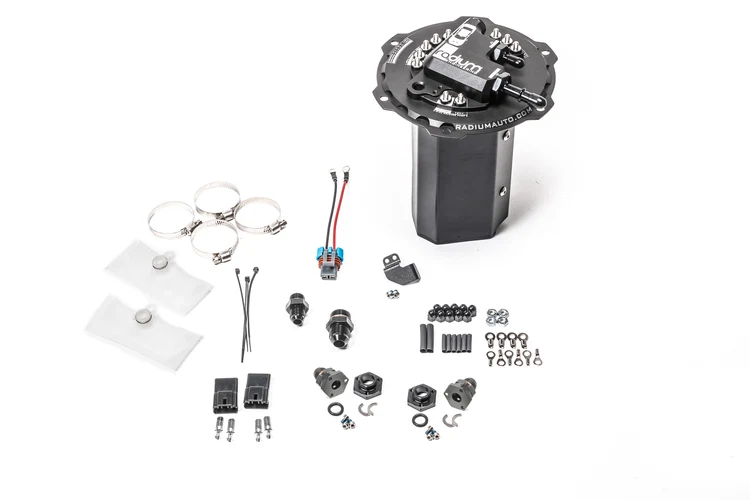

Fuel Pump Hanger

The fuel pump hanger replaces the factory fuel pump module. It supports compatible aftermarket pumps and offers options for different fuel delivery requirements.

The hanger also retains the factory fuel level sender and relevant tank sensors. This helps maintain important factory functions after the upgrade.

Please note: The fuel pump is sold separately. Check the selected hanger option before ordering.

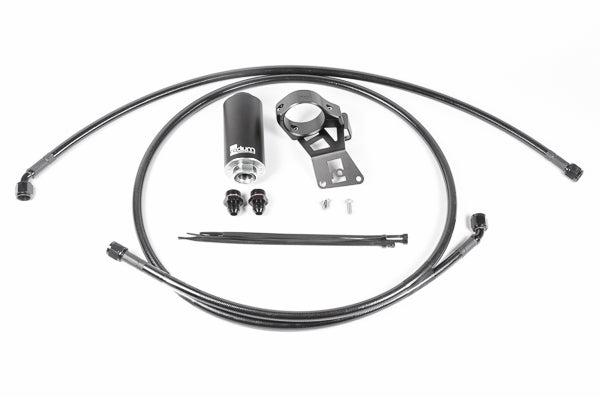

Fuel Feed Line and Filter

The fuel feed kit includes preassembled PTFE hose, an inline fuel filter, mounting hardware, and compatible fittings.

You can choose between available filter configurations, depending on the product options offered. These components help deliver fuel from the tank to the engine bay.

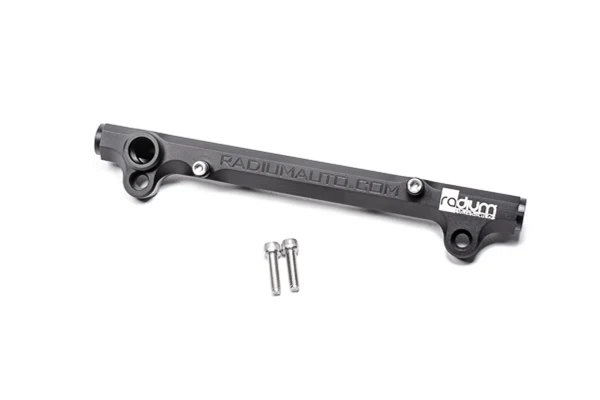

Fuel Rail and Pressure Regulator

The fuel rail supplies fuel to the injectors. The included pressure regulator helps control fuel pressure within the system.

The package also includes specified fittings, a fuel pulse damper, and a pressure gauge. Together, these parts help with fuel system setup and monitoring.

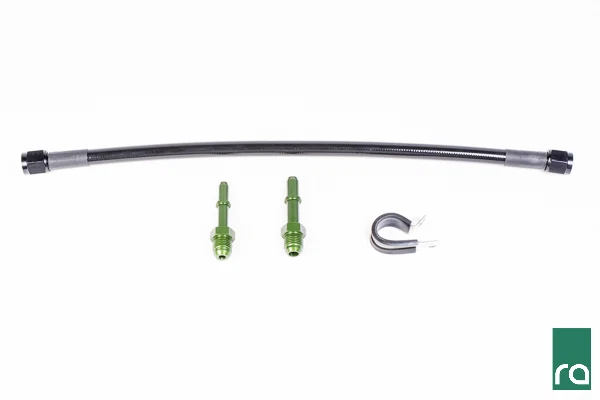

Fuel Return Kit

The return kit converts the factory fuel feed line for use as a return line. It includes the specified hose, fittings, and installation hardware.

This design helps simplify the conversion to a return-style fuel system without routing an entirely separate return line along the vehicle.

Supporting E85 and High-Performance Builds

E85 can require more fuel than gasoline to produce similar power. For this reason, choosing the correct pump and injectors is especially important for an ethanol-fueled Evo X.

This Radium Engineering system gives you more flexibility when planning your fuel setup. You can select compatible components to suit your engine modifications and power goals.

However, the kit does not guarantee a specific horsepower figure. The final result depends on your fuel pump, injector size, fuel pressure, turbocharger, and ECU tune.

Before purchasing, discuss your setup with your tuner. This is particularly important if you plan to run E85 or use a dual-pump configuration.

Mitsubishi Evo X Fitment

This fuel delivery system is designed for the following vehicle:

• Make: Mitsubishi
• Model: Lancer Evolution X
• Years: 2008–2015
• Engine: 4B11T 2.0L turbocharged
• Brand: Radium Engineering
• Fuel: Gasoline or E85, with compatible components

Check the product options carefully before ordering. The fuel pump and injectors are not included in the standard configuration described here.

You should also confirm that the selected pump hanger matches your intended fuel pump. If your Evo X has an aftermarket fuel system, verify compatibility before installation.

Installation and Tuning

Correct installation is essential for reliable fuel delivery. The system may require changes to fuel line routing and electrical connections.

If you have limited experience working with fuel systems, professional installation is recommended. Always follow the manufacturer’s instructions and check every connection for leaks before starting the engine.

Your tuner should also verify fuel pressure and injector operation after installation. The ECU must be calibrated for the selected injectors and fuel type before you drive the car under heavy load.

Frequently Asked Questions

Does the Evo X fuel delivery system include a fuel pump?

No. The fuel pump is sold separately. Choose a compatible pump for your selected hanger configuration.

Are fuel injectors included?

No. You must purchase injectors separately. Choose the correct size for your engine and power goals.

Can I use this system with E85?

Yes, provided the complete fuel system is configured with E85-compatible components. Check the specifications of every pump, hose, seal, and fitting.

Will this system support a high-horsepower Evo X?

It can form part of a high-performance fuel system. However, the final capacity depends on the pump, injectors, fuel pressure, and engine setup.

Which models does it fit?

The system is designed for the 2008–2015 Mitsubishi Lancer Evolution X. Confirm the exact product configuration before ordering.

Order Your Mitsubishi Evo X Fuel Delivery System

Build a more flexible fuel system for your Mitsubishi Lancer Evolution X with Radium Engineering components. Choose the right configuration for your setup and order from Evomotorparts to support your next Evo X upgrade.
