Forced Performance Red 76HTZ JB Turbo | 2006 Mitsubishi Evo 9

Description

Shop Forced Performance Red 76HTZ JB Turbo for 2006 Evo 9 at EvoMotorParts for Mitsubishi Lancer Evolution 7/8/9 builds. This performance upgrade is a fitment-focused forced induction upgrade designed for enthusiasts who want improved boost response and dependable turbo system performance.

Check the full product overview below for fitment, features, and installation notes before ordering for your Mitsubishi Lancer Evolution 7/8/9.

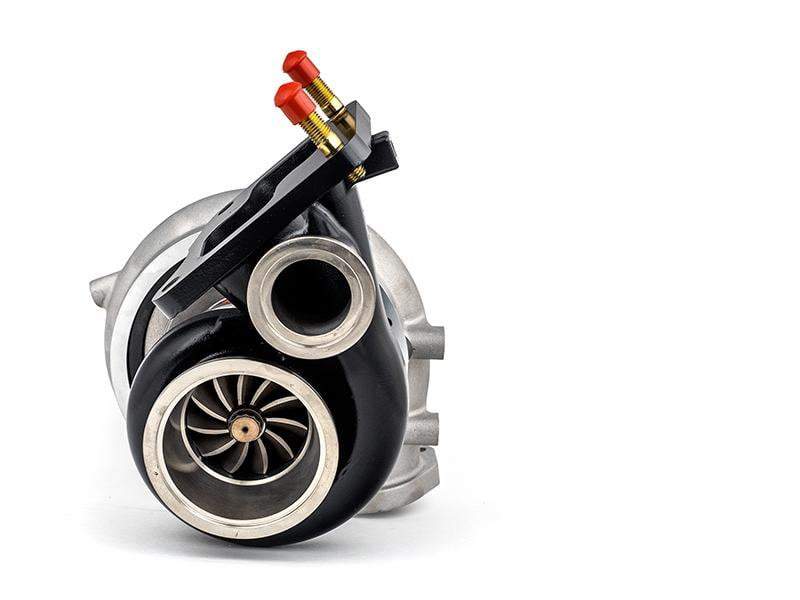

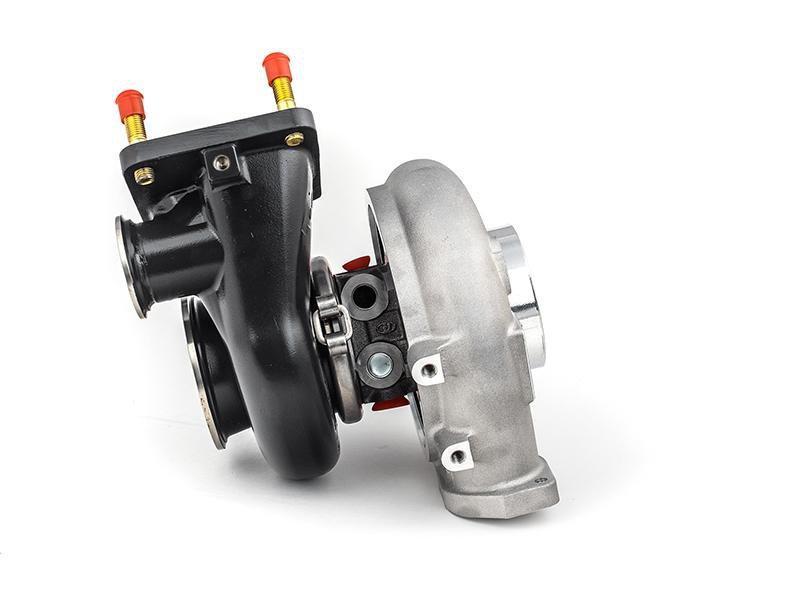

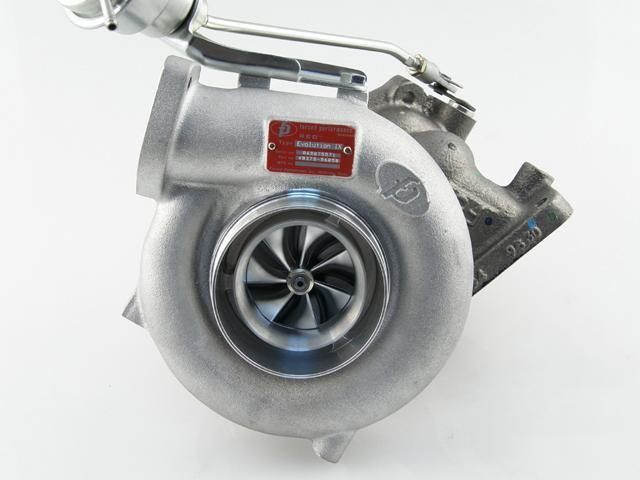

Mitsubishi Evolution 9 Red 76HTZ Turbo by Forced Performance
The FP Red is the pinnacle of street and strip turbochargers. It is small enough that it doesn’t take forever to build boost but large enough to make more than 525WHP.
All EVO turbos now come standard with our new cast stainless turbine housing. This turbine housing has been designed to maximize flow while not sacrificing spool characteristics. It has a 3″ V-Band outlet and a TiAL MV-S waste gate flange machined directly onto the housing.
Features
Compressor wheel – 76HTZ
Flow rating – 61LB per minute
CW Measurements – 54.8MM Inducer / 76MM Exducer
TW Measurements – 67.3MM Inducer / 58.8MM Exducer
Compressor Housing – 84MM Flow Advancement Port Cover
Turbine Housing – FP Stainless EVO 9 Turbine Housing
CHRA – FP Journal Bearing
Oil Line – Not Included – Required for proper lubrication
Please Note: This turbine housing was designed for race applications where the turbocharger would be operating above 20psi. Attempting to operate below 20PSI can result in boost creep in some applications.
California Residents – Prop 65 Warning.
Applications
2006 Mitsubishi Evolution 9
What’s In The Box?
1 – FP Red 76HTZ Turbo
Warranty
Manufacturer Standard Warranty
