Description

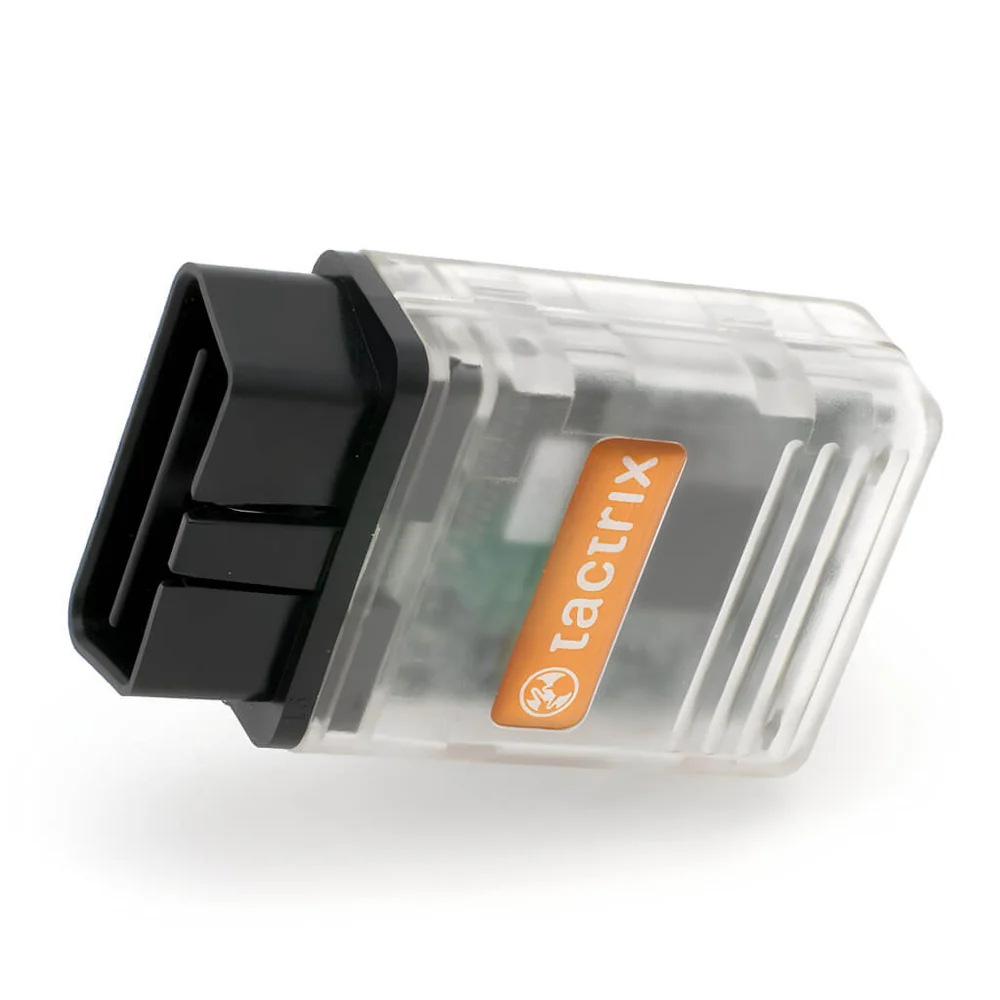

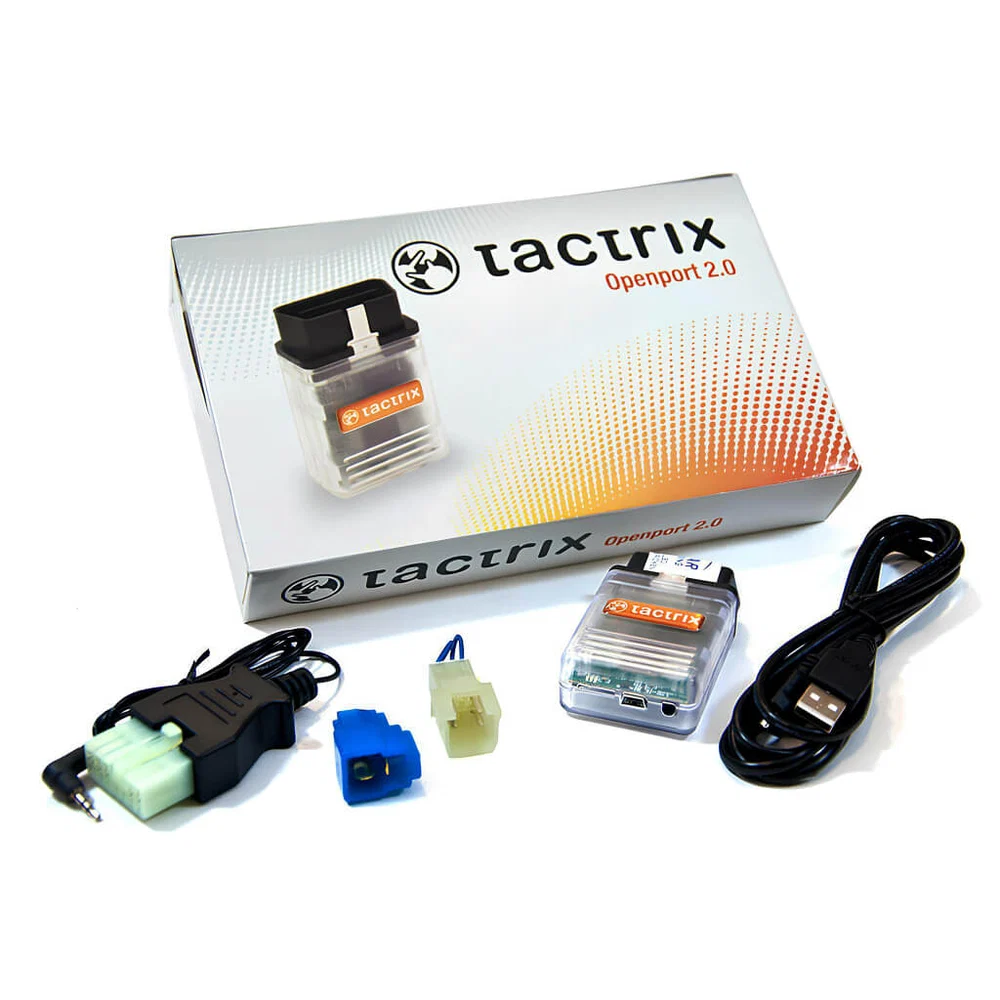

TACTRIX OpenPort 2.0 Complete – Mitsubishi EVO X Tuning

Firstly, Buy TACTRIX OpenPort 2.0 Mitsubishi Evo X Tuning interface for ECU reflashing. The TACTRIX OpenPort 2.0 Complete for Mitsubishi EVO X Tuning is a professional-grade OBD interface designed for ECU reflashing, engine data logging, diagnostics, and calibration work on the Mitsubishi Lancer Evolution X. Used together with Tactrix EcuFlash software, the OpenPort 2.0 provides a direct communication interface between a Windows PC and the Evo X ECU through the vehicle’s OBD-II diagnostic port. Tactrix lists the Evolution X among the Mitsubishi vehicles supported by EcuFlash.

For Evo X owners, tuners, workshops and performance enthusiasts, the OpenPort 2.0 is a versatile solution for accessing ECU data and performing supported ECU reflashing operations. Unlike a basic diagnostic scanner, the OpenPort 2.0 is designed around ECU communication and tuning applications, making it particularly useful when modifying a 2008–2015 Mitsubishi Lancer Evolution X.

TACTRIX OpenPort 2.0 for Mitsubishi EVO X Tuning

The OpenPort 2.0 uses an industry-standard SAE J2534 PassThru interface, allowing compatible software to communicate with the vehicle ECU. Tactrix specifically designed the OpenPort 2.0 to work with EcuFlash for reflashing and logging supported Subaru and Mitsubishi vehicles.

The Evo X is especially convenient because Tactrix identifies it as a Mitsubishi application that does not require the separate pre-CAN reflash adapter used by earlier Evolution models such as the Evo 5–9.

This makes the OpenPort 2.0 a practical tuning interface for Evo X owners who want direct access to compatible ECU calibration and logging functions.

ECU Reflashing and Calibration

Firstly, the OpenPort 2.0 provides the communication hardware needed for supported ECU reflashing through EcuFlash. EcuFlash can read and write supported ECU ROMs and provides access to calibration tables when the appropriate definitions are available.

Secondly, EcuFlash allows supported ECU data to be viewed and edited through human-readable maps and tables. This can be useful when calibrating a modified Evo X for changes such as intake, exhaust, boost control or other engine modifications.

Thirdly, the OpenPort 2.0 provides data-logging capabilities that can help tuners evaluate ECU parameters and make informed calibration adjustments.

Actual ECU maps and available parameters depend on the specific ROM, ECU configuration and software definitions being used. Tactrix notes that the ability to reflash a vehicle does not necessarily mean every ROM has complete XML definitions for editing every map.

Evo X Diagnostic and Data Logging Interface

The OpenPort 2.0 is more than an ECU flashing cable. It also supports data logging and diagnostic communication.

Its built-in processor handles communication with the ECU, reducing the communication workload placed on the connected computer. Tactrix states that the OpenPort 2.0 can perform reliable, fast reflashing and logging.

The unit also includes a built-in microSD slot, allowing standalone data logging without a laptop. This can be particularly useful for diagnosing intermittent problems or collecting ECU data during vehicle operation.

OpenPort 2.0 Technical Specifications

The TACTRIX OpenPort 2.0 includes several important hardware features for professional and enthusiast tuning applications:

• Product: Tactrix OpenPort 2.0
• Application: Mitsubishi Lancer Evolution X tuning
• Interface: SAE J2534 PassThru
• Processor: 72 MHz 32-bit processor
• Connection: USB 2.0
• Cable: USB-A to Mini-B cable
• CAN: CAN 2.0 / ISO15765
• K-Line: ISO9141 / ISO14230 / KWP2000
• J2534: Windows DLL support
• Data Logging: Standalone microSD / microSDHC logging
• Status: RGB indicator LEDs
• Vehicle Voltage: 12-volt vehicles
• Software: Tactrix EcuFlash
• Evo X Adapter: No separate Mitsubishi pre-CAN adapter required

Complete Tuning Solution for the Mitsubishi Evo X

The OpenPort 2.0 is well suited to modified Evo X vehicles where ECU calibration needs to be considered alongside hardware upgrades.

Common performance modifications can include upgraded intercoolers, intake systems, exhaust components, turbochargers, boost-control hardware and fuel-system changes. ECU calibration may be required or recommended depending on the modification and the specific tuning strategy.

The OpenPort 2.0 itself does not automatically create a tune. It is the communication hardware used with compatible software and calibration definitions. Proper tuning should be performed by someone familiar with the Evo X ECU and the modifications installed on the vehicle.

This distinction is important for buyers. The OpenPort is the interface; the calibration strategy, ROM definitions and tuning decisions depend on the software and tuner.

EcuFlash Software Compatibility

Tactrix provides EcuFlash as its ECU reflashing and editing software for the OpenPort 2.0. EcuFlash uses XML-based definitions to translate ECU data into readable maps and tables.

Tactrix’s supported-vehicle information specifically includes EVO 5/6/7/8/9/10 among Mitsubishi applications that EcuFlash can reflash.

For Evo X owners, this provides a flexible platform for ECU work without requiring a proprietary in-car tuning display.

Why Use a TACTRIX OpenPort 2.0?

The OpenPort 2.0 combines several functions into one compact interface:

• ECU reflashing
• ECU data logging
• OBD diagnostics
• J2534 PassThru communication
• CAN communication
• K-Line communication
• Standalone microSD logging
• PC-based EcuFlash operation
• Firmware updates
• Compatibility with supported third-party J2534 applications

This makes it useful for both performance tuning and diagnostic work.

Ideal for Mitsubishi EVO X Enthusiasts

The Mitsubishi Lancer Evolution X has a strong aftermarket and a wide range of available performance modifications. Having an appropriate ECU communication interface is therefore useful for owners who want to monitor vehicle data or work with compatible ECU calibration software.

The TACTRIX OpenPort 2.0 is particularly relevant to:

• Evo X street cars
• Evo X track builds
• Turbocharged performance builds
• ECU tuning projects
• Custom calibration work
• Diagnostic troubleshooting
• Data-logging applications
• Performance workshops
• Evo X enthusiasts working with EcuFlash

The OpenPort 2.0 is also useful beyond the Evo X because its J2534 architecture supports a broader range of compatible vehicles and software applications.

Installation and Usage

Using the OpenPort 2.0 is straightforward. Connect the interface to the Evo X OBD-II port and connect the USB cable to a compatible Windows PC. Install the appropriate Tactrix drivers and compatible tuning software before beginning any ECU communication or flashing procedure.

Always ensure the vehicle has a stable electrical supply during ECU reflashing. Interrupting an ECU write process can potentially cause serious ECU problems.

Before modifying a ROM, save an original backup whenever the supported software and ECU allow it. Keep the original file safely stored so the vehicle can be returned to its previous calibration if necessary.

Frequently Asked Questions

Does the TACTRIX OpenPort 2.0 work with the Mitsubishi Evo X?
Yes. Tactrix lists the Evolution X among the Mitsubishi vehicles supported by EcuFlash and the OpenPort 2.0 platform.

Does the Evo X need a Mitsubishi reflash adapter?
No. Tactrix identifies the Evo X as a CAN vehicle that does not require the separate pre-CAN Mitsubishi adapter used for earlier Evo 5–9 applications.

Can the OpenPort 2.0 reflash the Evo X ECU?
The OpenPort 2.0 is designed for ECU reflashing with compatible software, including EcuFlash, and Tactrix lists Evo X among its supported Mitsubishi applications.

Does it include EcuFlash software?
EcuFlash is Tactrix’s software used with the OpenPort 2.0 and is available through Tactrix’s software resources.

Can it log ECU data?
Yes. The OpenPort 2.0 supports data logging and can also perform standalone logging to compatible microSD/microSDHC storage without a laptop.

Can the OpenPort 2.0 be used for diagnostics?
Yes. Tactrix describes the OpenPort 2.0 as supporting reflashing, logging and diagnostics, in addition to J2534 PassThru communication.

Is the OpenPort 2.0 only for Mitsubishi vehicles?
No. It supports a range of compatible vehicles and software applications. Tactrix specifically lists Mitsubishi and Subaru applications among its supported tuning platforms.

Can I use it with any Evo X tune automatically?
No. Compatibility with a particular ROM and the available maps depends on the ECU software, ROM definitions and supported EcuFlash functionality. Tactrix notes that not every supported vehicle necessarily has complete XML definitions for every ROM.

Is the OpenPort 2.0 suitable for a modified Evo X?
Yes, when used with compatible software and an appropriate tuning strategy. It provides the communication, reflashing and logging interface required for supported ECU tuning work.Get the TACTRIX OpenPort 2.0 Complete for Mitsubishi EVO X ECU tuning, reflashing and data logging, and shop performance-focused Mitsubishi Evo parts at evomotorparts.com.
