Description

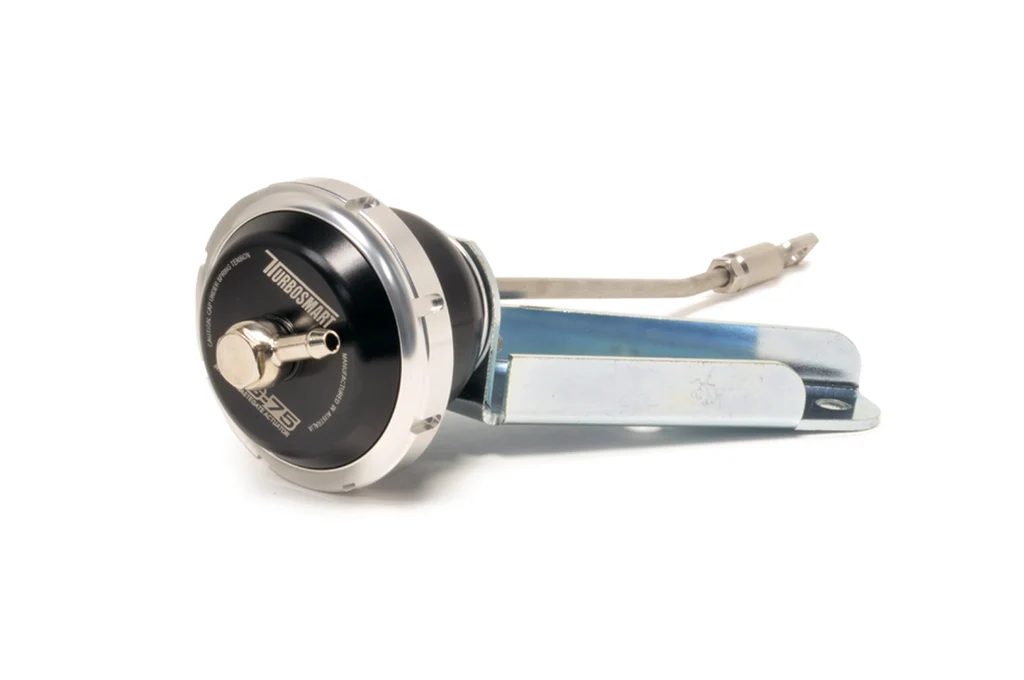

Turbosmart IWG75 Evo 6-8 Wastegate Actuator

Firstly, Buy the Turbosmart Evo 6-8 actuator online for compatible TD05H turbos. Improve turbo boost control on your Mitsubishi Lancer Evolution with the Turbosmart Evo 6-8 actuator. Designed for compatible factory-frame turbochargers, the IWG75 offers improved boost response and more flexibility when setting up your engine.

The actuator features a high-grade billet-aluminum body, a proprietary silicone-Nomex diaphragm, and stainless-steel hardware. Its design helps the wastegate respond to pressure changes while maintaining control as engine speed increases.

Turbosmart offers several spring-pressure options, allowing you to choose a configuration that suits your turbo and tuning goals. The 14 PSI version is listed as a direct replacement for the factory actuator. Other pressure options require ECU tuning or recalibration.

Whether you are maintaining a street-driven Evo or building a modified 4G63 engine, choosing the correct actuator can help you achieve a more consistent boost-control setup. Confirm your turbocharger and required spring pressure before ordering.

Turbosmart Evo 6-8 Actuator Features

The IWG75 is an upgraded internal wastegate actuator designed for compatible Mitsubishi Evolution turbochargers. It aims to improve boost response while providing a durable replacement for the factory unit.

Key features include:

• Brand: Turbosmart
• Model: IWG75 internal wastegate actuator
• Vehicle application: Mitsubishi Lancer Evolution VI, VII, and VIII, subject to turbo compatibility
• Turbo compatibility: Compatible factory-frame TD05H turbochargers
• Body: High-grade billet aluminum
• Diaphragm: Proprietary silicone-Nomex construction
• Rod and clevis: Stainless steel
• Spring options: 10, 14, 18, 22, and 26 PSI, depending on the selected version
• Mounting: Vehicle-specific bracket
• Adjustment system: Turbosmart locking collar
• Installation hardware: Supplied hardware and swivel hose barb

The exact part number depends on the selected spring pressure. Check the product variant before purchasing to ensure it matches your setup.

How the IWG75 Improves Boost Control

A wastegate actuator controls the internal wastegate inside a turbocharger. The wastegate regulates exhaust flow through the turbine, helping control boost pressure.

The Turbosmart IWG75 uses an increased working ratio compared with typical factory equipment. Its larger effective diaphragm area and revised spring design help the actuator respond to the forces acting on it.

When correctly matched to the turbocharger, this design can help the engine reach peak boost earlier and maintain boost for longer at higher RPM. Actual results depend on the turbo, exhaust backpressure, engine setup, and ECU calibration.

An upgraded actuator does not guarantee a specific horsepower increase. Its primary role is to improve wastegate operation and provide a suitable base spring pressure for your build.

Choose the Right Spring Pressure

Selecting the correct spring is one of the most important parts of buying a Turbosmart actuator. Spring pressure affects the wastegate’s opening behavior and the minimum boost level the system can support.

The IWG75 range includes several options:

• 10 PSI: A lower-pressure option for suitable factory-style setups.
• 14 PSI: The listed direct-replacement option for the factory actuator.
• 18 PSI: A higher-pressure option for compatible modified setups.
• 22 PSI: A firmer spring option for applications requiring more base pressure.
• 26 PSI: The highest listed pressure option in this range.

These figures represent actuator spring ratings, not guaranteed operating boost. The final boost level also depends on the boost controller, exhaust system, turbo efficiency, and engine management.

The 14 PSI version is specified as a direct replacement for the factory actuator. Other versions require ECU tuning or recalibration. Always confirm the correct spring pressure with your tuner before ordering.

Mitsubishi Evo 6, 7, and 8 Fitment

The Turbosmart IWG75 Evo 6-8 actuator is designed for compatible factory-frame turbochargers, including the TD05H configuration fitted to the relevant Mitsubishi Evolution models.

Before buying, check the following:

• Your exact Evo model and year.
• The turbocharger currently installed.
• Compatibility with the actuator mounting bracket and wastegate arm.
• The required spring pressure.
• Whether your ECU calibration supports the selected version.

If your vehicle has an aftermarket turbo, do not assume the actuator will fit simply because the car is an Evo 6, 7, or 8. Confirm the turbo housing and mounting arrangement first.

Installation and ECU Tuning

Correct installation helps the actuator control the wastegate as intended. The mounting bracket, actuator rod, and wastegate linkage must align correctly.

Firstly, inspect the turbocharger and wastegate arm for wear or damage. A sticking wastegate can cause boost problems even with a new actuator.

Secondly, confirm the spring pressure before installation. A stronger spring can increase base boost and may cause a higher-than-expected boost level.

Thirdly, check boost pressure after fitting the actuator. Use the manufacturer’s installation instructions and have a qualified tuner verify the setup. ECU recalibration is required for spring options other than the specified 14 PSI direct-replacement version.

These checks help ensure that the actuator works with your boost-control system and engine calibration.

Why Buy a Turbosmart IWG75 for Your Evo?

The Turbosmart IWG75 combines a billet-aluminum body, a reinforced diaphragm design, and several spring options in one vehicle-focused upgrade. It gives Mitsubishi Evo owners a choice when replacing a factory actuator or adjusting boost control for a modified turbo setup.

It can suit street and performance builds when correctly matched to the turbocharger and engine. The right spring pressure is more important than simply choosing the highest available rating.

If you are shopping for Mitsubishi Evo parts, check fitment and tuning requirements before ordering. Choosing the correct actuator can help avoid installation issues and support more consistent turbo operation.

Frequently Asked Questions

Which Mitsubishi Evo models does this actuator fit?

It is intended for compatible factory-frame turbochargers used on the Evo VI, VII, and VIII applications specified by the listing. Confirm your turbocharger before purchase.

What spring pressures are available?

The listed options are 10, 14, 18, 22, and 26 PSI. Availability may vary by product variant.

Which version is closest to the factory actuator?

Turbosmart identifies the 14 PSI version as the direct replacement for the factory item.

Will a higher-pressure spring increase horsepower?

Not automatically. A higher spring pressure changes wastegate behavior and can increase base boost, but power depends on the entire engine setup and calibration.

Do I need ECU tuning?

The 14 PSI version is listed as a direct replacement. Other spring options require ECU tuning or recalibration. Have boost control checked after installation.

Does the actuator include a mounting bracket?

The product listing specifies a vehicle-specific mounting bracket, pre-fitted springs, required fasteners, a swivel hose barb, and a protective hood. Confirm the contents of your selected variant before ordering.

Can I use this actuator with an aftermarket turbo?

Possibly, but compatibility depends on the turbo housing, mounting points, and wastegate design. Confirm the application with Turbosmart or your turbo supplier. Shop the Turbosmart IWG75 Evo 6-8 wastegate actuator at Evomotorparts.com and select the correct spring pressure for your Mitsubishi Evolution build.

Buy the Turbosmart Evo 6-8 actuator online for compatible TD05H turbos, Compare spring pressures and confirm fitment before ordering.
