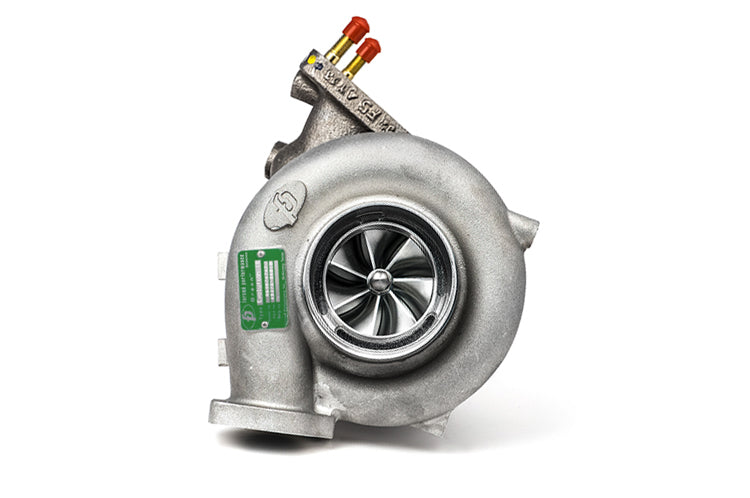

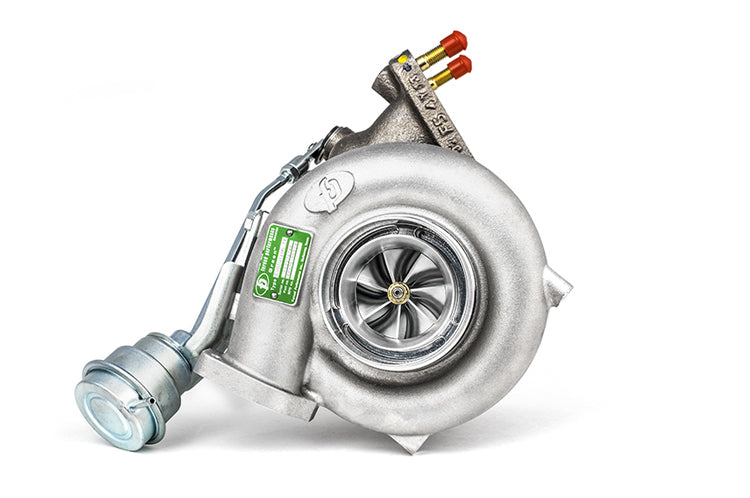

FP54 Green Evo IX Turbo

Description

Shop FP54 Green Evo IX Turbo at EvoMotorParts for Mitsubishi Evo applications builds. This oem replacement is a fitment-focused performance component designed for enthusiasts who want fitment-focused performance and dependable installation confidence.

Use the specifications and application details below to verify this components part is the right fit for your Mitsubishi Evo applications build.

The FP54 Green is a torque monster due to its smaller 65MM TD06 turbine wheel and ultra responsive 73MM HTA compressor wheel. Features a new, 9-blade FP54 turbine wheel paired with a 73 HTZ compressor wheel to make a quicker spooling Green that still flows 57LB per minute. It even comes in a 10.5 MHI housing so it’s a stock location, bolt-on solution.Compatible with these models: Mitsubishi Evolution IV V VI VII VIII IXPlease review all options before purchase!There is a lot of information on this page. These turbos are available with the journal bearing or ball bearing CHRA and only offered with the Mitsubishi housing only. The MHI housing will work with factory-style o2/downpipe and uses an Evo 9 style actuator. The stock Evo 8 actuator will not work. The FP54 is not available with the stainless housing.FP54 Green Evo IX Turbo FP Part Numbers:2005000, 2005002, 2005004, 2005100, 2005102, 2005104

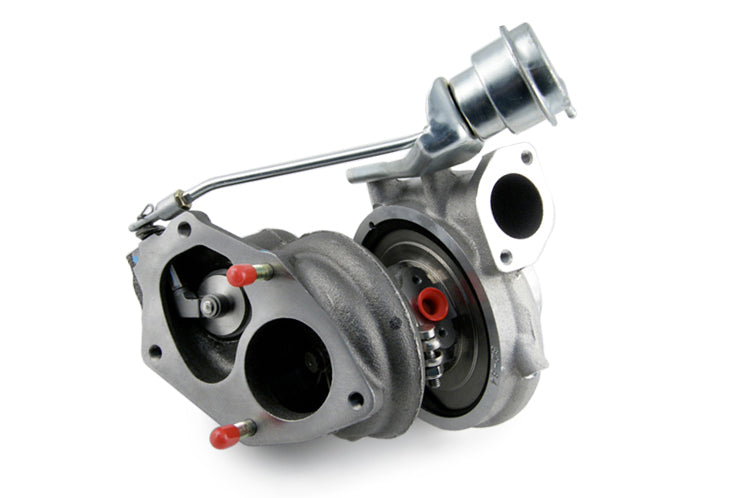

The Mitsubishi MHI Turbine Housing
MITSUBISHI 10.5 MHI HOUSING
Bolts to stock exhaust manifold or aftermarket factory-placement manifold with Mitsu flange.
Fits factory o2 housing and downpipe or any stock placement aftermarket o2 housing and downpipe combo.
Uses Evo 9 Style Internal Wastegate.(Available with purchase.)
Recommended Options for Install: • STM O2/Downpipe Recirculated • STM O2/Downpipe with Atmosphere Dump • Invidia O2 Housing
Manifold Gasket (Not Included) • OEM Gasket • STM Stainless Gasket
What’s the difference between Journal Bearing and Ball Bearing?
FP 54Green:
Journal Bearing:
Ball Bearing:
CHRA:
FP Journal Bearing
Xona Rotor Dual Ceramic BB
Oil Line:
NOT Included. Required for Install.NOT compatible with stock feed lines.NEW FP JB Feed Line is (Available HERE.)
NOT Included. Required for Install.Compatible with stock feed lines!(Optional) NEW FP SS Feed Line is (Available HERE.)
Compressor Wheel:
73HTZ
73HTZ
Flow Rating:
57 lb Per Minute
57 lb Per Minute
Compressor Wheel Inducer:
52.6mm
52.6mm
Compressor Wheel Exducer:
73mm
73mm
Turbine Wheel Inducer:
60.8mm
60.8mm
Turbine Wheel Exducer:
54mm
54mm
Compressor Housing:
84mm Flow Advancement Port Cover
84mm Flow Advancement Port Cover
Black Ceramic Coating (+$100):
(Stainless housing is pictured, but please note the FP54 is not available with the stainless housing. MHI only.) You can have your MHI housing treated with a black ceramic coating to help keep the heat in, keeping your engine bay cooler and it will look amazing!
