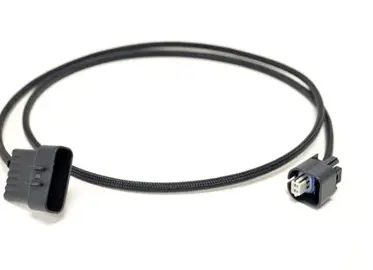

SpoolinUp Speed Density Harness for Evo 8/9

Firstly, Buy SpoolinUp Speed Density Harness Evo 8/9 for 2003–2006 Mitsubishi Evolution models. The SpoolinUp Speed Density Harness for Evo 8/9 is a purpose-built wiring solution for Mitsubishi Lancer Evolution VIII and IX owners converting from the factory mass airflow system to a speed density engine management setup. Designed for 2003–2006 Mitsubishi Lancer Evolution VIII and IX, this 3.5-foot harness connects to the factory MAF connector and provides the wiring interface needed for a speed density conversion without having to build the harness from scratch.

SpoolinUp builds the harness using a custom-molded male MAF connector, high-quality OEM connectors, Teflon military-grade wire, and high-temperature wire sheathing. This combination provides a clean solution for Evo 8/9 engine management projects where the factory MAF-based airflow strategy is being replaced with MAP and intake-air-temperature based measurement.

SpoolinUp Speed Density Harness for Evo 8/9

A speed density system calculates engine airflow using parameters such as manifold pressure, intake air temperature and engine speed rather than relying on the factory mass airflow sensor for the primary airflow calculation.

For a modified 4G63T Evo 8 or Evo 9, speed density can be part of a broader engine-management setup. The SpoolinUp Speed Density Harness simplifies the electrical side of that conversion by providing a pre-built harness instead of requiring the installer to fabricate the MAF-side wiring themselves.

The harness is approximately 3.5 feet long, giving useful routing flexibility within the engine bay. Its factory-style connectors are designed to make the installation cleaner and more organized than a collection of individually spliced wires.

Key Features

Firstly, the SpoolinUp harness uses a custom-molded male MAF connector designed to connect to the factory Evo 8/9 MAF wiring connection.

Secondly, it uses Teflon military-grade wire and a high-temperature wire sheath, making the harness suitable for the demanding environment around a turbocharged 4G63 engine.

Thirdly, it uses OEM-quality connectors to provide a clean and professional wiring solution for speed density conversions.

This makes the harness particularly useful for enthusiasts who want to eliminate unnecessary wiring fabrication when converting an Evo 8 or Evo 9 to a compatible speed density configuration.

Product Specifications

• Brand: SpoolinUp
• Product: Speed Density Harness
• Application: Mitsubishi Lancer Evolution VIII / IX
• Model Years: 2003–2006
• Engine Platform: Mitsubishi 4G63T
• Harness Length: Approximately 3.5 feet
• Connector: Custom-molded male MAF connector
• Wiring: Teflon military-grade wire
• Connectors: High-quality OEM connectors
• Protection: High-temperature wire sheath
• Part Number: SpoolinUp SD / SPU-SD-HARNESS
• Purchase Includes: 1 harness

Evo 8 and Evo 9 Speed Density Conversion

The SpoolinUp harness is intended for the basic SD harness configuration on standard US-market Evo applications. SpoolinUp specifically states that a standard US-market Evo requires the basic SD harness.

A speed density conversion also requires additional components and ECU calibration. SpoolinUp’s installation information specifies the installation of a GM IAT sensor in the intake manifold and an appropriate aftermarket or JDM MAP sensor. It also notes that Tephra v7 must be installed and tuned for the basic setup described by the manufacturer.

Therefore, this harness should not be considered a complete speed density conversion kit by itself. It is the wiring component used as part of the overall conversion.

Designed for Modified 4G63T Builds

The Evo 8 and Evo 9 are popular platforms for modified 4G63T engine builds. Larger turbochargers, upgraded intake systems and other engine modifications can lead owners to consider alternative engine-management strategies.

A speed density setup can be integrated into a larger tuning package when the ECU and calibration strategy support it. The SpoolinUp harness helps simplify the wiring portion of that project.

It can be useful for:

• Mitsubishi Evo 8 speed density conversions
• Mitsubishi Evo 9 speed density conversions
• 4G63T engine-management projects
• Custom ECU tuning
• Modified turbocharger setups
• MAP sensor installations
• GM IAT sensor installations
• Performance engine builds
• Custom intake systems
• Wiring projects where MAF-based airflow measurement is being replaced

Clean Wiring Without Building a Harness From Scratch

One of the main advantages of a pre-built harness is reduced fabrication work.

Instead of cutting the factory MAF wiring and manually creating a custom harness, the SpoolinUp solution provides a purpose-built connector and professionally assembled wiring. This can help keep the engine bay cleaner while making the speed density conversion more straightforward.

The harness construction also makes it easier to integrate the required sensors into a larger engine-management project, provided the ECU software and calibration support the configuration.

Important Installation Requirements

The harness alone does not convert an Evo 8 or Evo 9 to speed density.

According to SpoolinUp’s installation information, the basic conversion requires:

1. Installation of a suitable GM IAT sensor into the intake manifold.
2. Installation of an appropriate aftermarket or JDM MAP sensor.
3. Appropriate ECU software and calibration, including the manufacturer’s stated Tephra v7 requirement for the basic setup.

The exact sensor selection, ECU configuration and calibration should be confirmed before installation.

Proper tuning is especially important because changing from MAF-based airflow measurement to speed density changes the way engine airflow is calculated.

Standard US-Market Evo Application

SpoolinUp specifically states that the basic SD harness is intended for a standard US-market Evo.

The manufacturer also offers alternative harness configurations for EDM/JDM Evo models that did not come with a factory MAP sensor. These versions can provide different MAP connector options, including GM-style, factory-style and AEM MAP connectors.

For that reason, buyers should confirm their vehicle’s market specification before ordering the standard harness.

Frequently Asked Questions

What does the SpoolinUp Speed Density Harness do?
It provides the wiring interface needed to help convert a compatible Evo 8/9 from factory MAF-based airflow measurement to a speed density configuration.

Does it fit Evo 8 and Evo 9?
Yes. The listed application is 2003–2006 Mitsubishi Lancer Evolution VIII and IX.

How long is the harness?
The harness is approximately 3.5 feet long.

What type of wiring does it use?
SpoolinUp specifies Teflon military-grade wire together with a high-temperature wire sheath.

Does the harness include the MAP and IAT sensors?
No. The standard SD harness is the wiring component. SpoolinUp’s installation instructions separately call for a GM IAT sensor and an aftermarket or JDM MAP sensor.

Is this a complete speed density kit?
No. It is a speed density harness. Additional sensors and compatible ECU software/calibration are required for the complete conversion.

Can it be used on an EDM or JDM Evo?
The standard harness is intended for the standard US-market Evo. SpoolinUp offers separate EDM/JDM configurations for vehicles that did not have a factory MAP sensor.

Does it work with the factory MAF sensor?
The harness is intended for a speed density conversion rather than retaining the MAF as the primary airflow measurement system.

What is included?

The listed purchase includes one SpoolinUp Speed Density Harness. Upgrade the engine-management wiring on your Mitsubishi Evo 8 or Evo 9 with the SpoolinUp Speed Density Harness and shop quality Mitsubishi Evo performance parts at evomotorparts.com.
