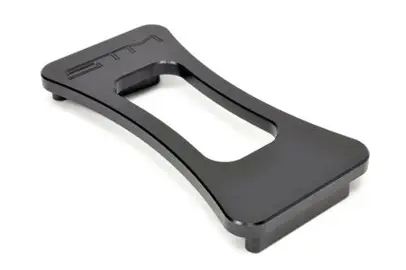

STM 4G63 Evo DSM Timing Belt Cam Alignment Tool

Firstly, Buy STM 4G63 Evo DSM Timing Belt Cam Alignment Tool for 4G63/4G63T engines. Make timing belt installation and cam gear alignment more straightforward with the STM 4G63 Evo DSM Timing Belt Cam Alignment Tool, a purpose-built tool designed for Mitsubishi 4G63 and 4G63T engines. Developed for DSM and Mitsubishi Evolution applications, this precision alignment tool features an open center section and alignment pointers that make it easier to view and locate the timing marks on compatible cam gears during timing belt service.

For owners rebuilding, maintaining, or modifying a 4G63-powered Mitsubishi, accurate camshaft positioning is an important part of a successful timing belt installation. Rather than relying on improvised methods to keep the cam gears positioned, the STM tool provides a dedicated solution designed specifically around the 4G63 timing system. It is compatible with Mitsubishi Evolution I through IX, as well as a range of DSM vehicles, Galant VR4, and other 4G63 applications.

Whether you’re replacing a timing belt, installing upgraded camshafts, changing cam gears, rebuilding a 4G63 engine, or performing preventative maintenance, this compact tool belongs in the workshop of anyone who regularly works on Mitsubishi Evo or DSM engines.

STM 4G63 Evo DSM Timing Belt Cam Alignment Tool

The STM 4G63 Evo DSM Timing Belt Cam Alignment Tool was redesigned with a wide open center and pointers to make the cam gear timing marks easier to see during installation. The updated version is machined in-house by STM and incorporates pointers intended to assist with alignment on DSM cam gears.

The open-center design is particularly useful because it allows the installer to look through the tool and directly observe the cam gear markings rather than working around a solid plate. This can make the timing belt installation process easier to monitor while the cam gears are being positioned.

STM specifies that the tool works across 4G63 DSM, Galant VR4, and Evolution I-IX applications. It is therefore suitable for a broad range of Mitsubishi performance platforms rather than being limited to a single Evolution generation.

Precision-Oriented Timing Belt Installation

Timing belt installation on a 4G63 requires careful attention to camshaft and crankshaft positioning. The cam alignment tool is designed to assist with maintaining and checking the correct cam gear position during the installation process.

Firstly, the open center provides improved visibility of the timing marks.

Secondly, the alignment pointers provide an additional visual reference when working with compatible DSM cam gears.

Thirdly, the dedicated design eliminates the need to rely on improvised positioning methods when performing a timing belt service.

The tool does not replace the manufacturer’s timing procedures or the need to verify all timing marks independently. Instead, it serves as a specialized workshop aid that makes the alignment process more convenient and repeatable.

Billet Aluminum Construction

The STM cam alignment tool is manufactured from billet aluminum and features a hard-anodized finish designed to provide long-term resistance to corrosion and wear. STM also states that the tool is made in the USA and carries a lifetime warranty against manufacturing defects for the original purchaser.

Billet aluminum provides a useful balance of strength and low weight for a workshop tool that may be used repeatedly during engine maintenance. The hard-anodized finish further protects the surface while giving the tool a durable professional appearance.

For an Evo enthusiast who regularly works on 4G63 engines, investing in a dedicated tool can be more practical than improvising with clamps, ties, or other temporary solutions.

Mitsubishi 4G63 and 4G63T Applications

The STM tool is designed around the Mitsubishi 4G63/4G63T engine family and is listed for a wide range of vehicles from the Mitsubishi Evolution and DSM communities.

Listed applications include:

• Mitsubishi Lancer Evolution I
• Mitsubishi Lancer Evolution II
• Mitsubishi Lancer Evolution III
• Mitsubishi Lancer Evolution IV
• Mitsubishi Lancer Evolution V
• Mitsubishi Lancer Evolution VI
• Mitsubishi Lancer Evolution VII
• Mitsubishi Lancer Evolution VIII
• Mitsubishi Lancer Evolution IX
• 1G Mitsubishi Eclipse GST/GSX
• 2G Mitsubishi Eclipse GST/GSX
• Eagle Talon TSi
• Mitsubishi Laser RS
• Mitsubishi Galant VR4

The listed vehicle coverage spans 1992–2006 Evolution I-IX applications and the corresponding DSM platforms specified by STM. Always verify your exact vehicle and engine configuration before ordering, particularly when working with swapped engines or aftermarket camshafts and cam gears.

Important DSM and Evo Alignment Note

There is an important distinction between DSM and Evolution cam gear markings. STM notes that the pointers on the redesigned tool are specifically for DSM applications, while Evo cam gear marks point upward and align with the valve cover.

This distinction should be considered when using the tool on different versions of the 4G63 platform. Always follow the correct timing procedure for your specific Mitsubishi engine and verify the crankshaft and camshaft timing marks before completing the installation.

A Useful Tool for Timing Belt Services

A dedicated cam alignment tool can be particularly useful when replacing a timing belt on an older Mitsubishi Evolution or DSM. Timing belt service often involves working within a restricted area around the cam gears, and having a tool designed for the engine can make the process more organized.

The STM tool is also relevant when installing aftermarket camshafts or adjustable cam gears. Because modifications can require careful positioning and repeated checks, a reusable alignment tool can become a valuable addition to a professional or enthusiast workshop.

For builders who already have an STM 4G63 Evo/DSM Timing Belt Tensioner Tool, the cam alignment tool can complement that equipment during a complete timing-system service. STM separately offers a 4G63 timing belt tensioner tool designed to help hold tension on the timing arm during timing belt and camshaft work.

Buy STM 4G63 Timing Tools Online

If you’re looking to buy online and add specialized timing tools to your Mitsubishi workshop, this STM cam alignment tool is a practical choice for 4G63 Evo and DSM applications. It is especially relevant for customers searching for an STM 4G63 cam alignment tool for sale, Evo timing belt tools, or professional workshop equipment for Mitsubishi Evolution engines.

At EvoMotorParts, you can shop Mitsubishi Evo parts online for engine maintenance, timing components, performance upgrades, OEM replacements, and specialized tools. From Evo 7, Evo 8, and Evo 9 parts to other 4G63 components and Evo X performance hardware, our catalog is focused on enthusiasts who maintain and build Mitsubishi Evolution vehicles.

The tool is also relevant to the international Mitsubishi performance community, including enthusiasts in the United States, Canada, the United Kingdom, Europe, Australia, New Zealand, and other markets where Evo and DSM vehicles continue to be maintained and modified.

Product Specifications

• Product: STM 4G63 Evo DSM Timing Belt Cam Alignment Tool
• Part Number: STM-4G63-TBTOOL
• Manufacturer: STM
• Tool Type: Cam Gear / Timing Belt Alignment Tool
• Engine: Mitsubishi 4G63 / 4G63T
• Construction: Billet Aluminum
• Finish: Hard Anodized
• Manufacturing: USA
• Application: Timing belt installation and cam gear alignment
• Compatibility: 4G63 DSM and Mitsubishi Evolution I-IX
• Includes: 1 × Cam Alignment Tool
• Warranty: Lifetime warranty against manufacturing defects for the original purchaser, according to STM

Frequently Asked Questions

What does the STM 4G63 cam alignment tool do?

The tool helps position and check the cam gears during timing belt installation on compatible Mitsubishi 4G63 and 4G63T engines. Its open center provides visibility of the timing marks.

What Mitsubishi Evo models does it fit?

STM lists compatibility with Evolution I through Evolution IX, covering the 4G63-powered Evolution generations.

Does it work with DSM vehicles?

Yes. The tool is listed for 1G and 2G DSM applications, including Mitsubishi Eclipse GST/GSX and Eagle Talon TSi, as well as other listed 4G63 vehicles.

Is the tool made from aluminum?

Yes. STM specifies billet aluminum construction with a hard-anodized finish.

Is the tool made in the USA?

Yes. STM states that the tool is USA made and is now machined in-house.

Does it work on Evo 8 and Evo 9?

Yes. STM lists the tool as compatible with Evolution I-IX, which includes the Evo 8 and Evo 9.

Are the pointers used the same way on DSM and Evo?

No. STM specifically notes that the pointers are for DSM applications, while Evo cam gear marks point upward and align with the valve cover. Always use the correct timing references for your specific engine.

Is this tool useful when installing aftermarket camshafts?

Yes. A cam alignment tool can be useful during camshaft, cam gear, and timing belt work, provided the specific camshaft and gear setup follows the applicable installation procedure.

Does the tool replace a timing belt tensioner tool?

No. The cam alignment tool and timing belt tensioner tool perform different functions. STM offers a separate tensioner tool for 4G63 Evo and DSM applications.

What comes with the product?

STM lists the purchase as including one cam alignment tool.

Where can I buy an STM 4G63 cam alignment tool?

You can shop and buy Mitsubishi Evo parts and specialized 4G63 workshop tools online at Evomotorparts, subject to current product availability. For accurate and convenient 4G63 timing belt work, shop the STM 4G63 Evo DSM Timing Belt Cam Alignment Tool at Evomotorparts and order the specialized Mitsubishi Evo parts and tools you need for your next engine service.

Buy STM 4G63 Evo DSM Timing Belt Cam Alignment Tool for 4G63/4G63T engines, Shop Evo 1-9 and DSM timing tools online at Evomotorparts.
