STM Engine Torque Plate for 4B11 Evo X (4B-TQP)

Firstly, Buy STM Engine Torque Plate Evo X 4B11 online. Build your Mitsubishi Evolution X 4B11T engine with professional machine-shop precision using the STM Engine Torque Plate for 4B11 Evo X (4B-TQP). Designed specifically for Mitsubishi 4B11 engine blocks, this high-quality torque plate is an essential tool for engine builders performing cylinder boring and honing operations. The STM 4B11 torque plate simulates the stress and distortion created when the cylinder head is installed and torqued, helping machine shops achieve more accurate cylinder bore dimensions and improved piston ring sealing.

The STM Engine Torque Plate for 4B11 Evo X (4B-TQP) is manufactured in-house by STM using precision-machined 6061 billet aluminum and includes 4130 chrome-moly inserts designed to protect the plate during installation and torque procedures. Built for high-performance engine builds, this tool is ideal for Mitsubishi Evo X owners creating reliable street, race, and high-horsepower 4B11T engines.

When rebuilding a turbocharged engine, machining accuracy plays a major role in long-term reliability. A properly honed cylinder block helps improve piston ring seating, reduce oil consumption, and create a stronger foundation for increased horsepower applications.

STM Engine Torque Plate for 4B11 Evo X Precision Engine Building Tool

The engine block changes shape slightly when the cylinder head is installed and tightened to factory specifications. During normal engine operation, the cylinder walls experience stress from head bolt clamping force, combustion pressure, and operating temperatures.

Without a torque plate during machining, the cylinder bores may not be perfectly round once the engine is assembled.

The STM Engine Torque Plate for 4B11 Evo X 4B-TQP replicates the same clamping force created by the cylinder head, allowing machine shops to bore and hone the block under realistic operating conditions. This process helps create a more accurate cylinder finish for improved engine performance and durability.

Benefits include:

• More accurate cylinder bore machining
• Improved piston ring seal
• Better oil control
• Increased engine reliability
• Professional engine-building results
• Ideal preparation for forged engine builds

Designed for Mitsubishi Evo X 4B11T Engine Builds

The Mitsubishi Evolution X 4B11T engine has become a popular platform for high-performance builds due to its strong aluminum block design, turbocharged performance, and excellent tuning capability.

The STM 4B11 torque plate is designed specifically for:

• 2008–2015 Mitsubishi Lancer Evolution X
• Mitsubishi 4B11 engine platforms
• Mitsubishi Lancer Ralliart Turbo applications

It supports cylinder bores up to 90mm, making it suitable for standard rebuilds and larger displacement performance applications.

Whether you are rebuilding a stock 4B11T engine or creating a forged internal race engine, using the correct machining equipment helps ensure the best possible foundation.

High-Quality 6061 Billet Aluminum Construction

The STM 4B11 Engine Torque Plate is manufactured from durable 6061 billet aluminum, providing the strength and stability required during professional engine machining.

Features include:

• CNC-machined 6061 billet aluminum construction
• 4130 chrome-moly protective inserts
• Precision engine block fitment
• Designed for repeated professional use
• Lifetime warranty against manufacturing defects for the original purchaser

The included chrome-moly inserts protect the torque plate surface during repeated installation and removal, helping maintain long-term accuracy.

Why Use a Torque Plate During Engine Honing?

Cylinder honing is one of the most important steps in engine preparation. The final cylinder surface directly affects piston ring seating, compression stability, and oil control.

A torque plate allows the machine shop to replicate the same stresses the block experiences when fully assembled.

Firstly, it helps prevent cylinder distortion by machining the block under realistic conditions.

Secondly, it improves the accuracy of the final cylinder bore, helping piston rings seal properly.

Thirdly, it provides a more reliable foundation for high-performance Mitsubishi Evo engine builds where increased boost and power levels create additional stress.

For enthusiasts building powerful 4B11T engines, proper machining preparation is just as important as selecting quality pistons, connecting rods, bearings, and turbocharger components.

Ideal for High-Horsepower Mitsubishi Evo X Builds

The Evo X 4B11T engine is capable of supporting impressive power levels when properly built. Many enthusiasts upgrade their engines with forged pistons, performance connecting rods, larger turbo systems, and upgraded fuel systems.

Buy STM Engine Torque Plate Evo X 4B11 online, Shop a precision 6061 billet aluminum torque plate for 4B11T engine boring and honing projects.

During these builds, cylinder block preparation becomes critical.

The STM Engine Torque Plate is commonly used for:

• Forged piston installations
• Big turbo Evo X builds
• Drag racing engines
• Track-focused vehicles
• High boost applications
• Complete short block assemblies
• Professional engine machining projects

This tool is an important addition for engine builders who demand precision and reliability from their Mitsubishi Evo parts.

Product Features and Specifications

Product Name: STM Engine Torque Plate for 4B11 Evo X
Brand: STM
Part Number: 4B-TQP / STM-4B-TQP
Application: Mitsubishi Evolution X
Engine Platform: 4B11 / 4B11T Turbo
Compatible Years: 2008–2015 Mitsubishi Evo X
Bore Capacity: Up to 90mm
Material: 6061 Billet Aluminum
Insert Material: 4130 Chrome-Moly
Torque Plate Thickness: 49.25mm
Spacer Height: 25.15mm
Weight With Spacers: Approximately 16.2 lbs

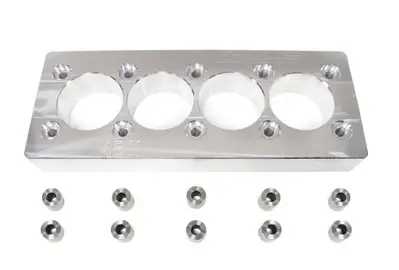

Package includes:

• (1) STM 4B11 Torque Plate
• (10) 25mm Chrome-Moly Inserts

Professional Choice for Mitsubishi Engine Machining

For serious Mitsubishi Evolution engine builds, precision machining is the difference between an average rebuild and a reliable performance engine. The STM 4B11 torque plate provides machine shops and engine builders with the correct tool to achieve accurate cylinder finishing.

Using quality engine-building equipment helps maximize the performance of other upgraded components, including forged pistons, connecting rods, crankshafts, and aftermarket turbo systems.

The STM Engine Torque Plate for Evo X 4B11 (4B-TQP) is an excellent investment for anyone assembling a durable and powerful 4B11T engine.

Frequently Asked Questions

What does a torque plate do for a 4B11 engine?

A torque plate simulates the pressure and distortion created when the cylinder head is bolted to the engine block, allowing more accurate boring and honing results.

What Mitsubishi models does the STM 4B-TQP fit?

The STM 4B-TQP is designed for Mitsubishi Evolution X 4B11 engines and also fits compatible Mitsubishi Lancer Ralliart Turbo applications.

Can this torque plate be used for high horsepower Evo X builds?

Yes. The STM 4B11 torque plate is designed for engine machining preparation used in both factory rebuilds and high-performance 4B11T builds.

What bore size can the STM 4B-TQP support?

The STM 4B11 torque plate supports engines with cylinder bores up to 90mm.

Is this only for professional machine shops?

No. While commonly used by professional engine builders, it is also valuable for experienced Mitsubishi Evo enthusiasts completing their own engine projects.

Does this increase horsepower?

The torque plate does not directly increase horsepower, but it helps create a more accurate engine block foundation that supports improved reliability and performance. Prepare your Mitsubishi Evolution X 4B11T engine block with professional-level accuracy using the STM Engine Torque Plate for Evo X 4B11 (4B-TQP), designed to improve machining precision, piston ring sealing, and engine durability for serious performance builds, and shop premium Mitsubishi Evo parts online from evomotorparts.com today.
