Öhlins Road & Track Coilover Kit – 2008–2015 Mitsubishi Evo X – MIS Mi10S1

Firstly, BUY Öhlins Evo X Coilovers MIS Mi10S1 for 2008–2015 Mitsubishi Evolution X. Upgrade the suspension of your Mitsubishi Evolution X with the Öhlins Road & Track Coilover Kit MIS Mi10S1, a premium adjustable suspension system engineered for the Evo X CZ4A. Designed to deliver a balance between responsive road handling and track capability, the Road & Track system combines Öhlins Dual Flow Valve (DFV) technology, adjustable damping, independent ride-height adjustment, and application-specific spring rates. Öhlins officially lists MIS MI10S1 for the Mitsubishi Lancer Evolution X and describes the system as suitable for both spirited road driving and track use.

The MIS Mi10S1 uses a 1-way, 25-click damping adjustment, allowing the driver to change damper behavior according to the driving environment. Öhlins’ DFV technology is designed to manage both low- and high-speed compression and rebound characteristics through the damper adjustment system, helping the suspension respond to road imperfections while maintaining controlled chassis movement during performance driving.

Firstly, the adjustable ride height allows Evo X owners to establish a lower, performance-oriented stance while retaining suspension adjustability. Secondly, the adjustable damping provides a way to alter the suspension response between normal road driving and more aggressive driving. Thirdly, the included spherical upper mounts provide a more direct connection between the suspension assembly and chassis while the front mounts also provide adjustable camber.

With a 100 N/mm front spring rate and 80 N/mm rear spring rate, MIS Mi10S1 is configured specifically for the Evo X platform rather than being a generic universal coilover system. Öhlins lists an approximately 10–35 mm lowering adjustment range and a recommended setup around 25 mm lower than standard.

Features

• Genuine Öhlins Road & Track suspension system
• Part number: MIS MI10S1
• Designed for Mitsubishi Lancer Evolution X CZ4A
• Öhlins Dual Flow Valve (DFV) technology
• 1-way damping adjustment
• 25-click compression and rebound adjustment
• Independently adjustable ride height
• Separate damper-length adjustment
• Rebuildable dampers
• Monotube damper construction
• Front inverted MacPherson struts
• Front aluminum spherical top mounts
• Front adjustable camber top mounts
• Rear aluminum monotube shocks
• Rear spherical top mounts
• Front spring rate: 100 N/mm
• Rear spring rate: 80 N/mm
• Approximately 10–35 mm ride-height adjustment range
• Approximately 25 mm target lowering with recommended setup
• Corrosion salt-spray tested to ISO 9227
• TÜV approved
• 2-year Öhlins warranty according to the manufacturer

Specifications

Specification	Details
Brand	Öhlins
Product	Road & Track Coilover Kit
Part Number	MIS MI10S1
Vehicle	Mitsubishi Lancer Evolution X
Chassis	CZ4A
Application	Road & Track
Technology	Dual Flow Valve (DFV)
Damping	1-way adjustable
Damping Adjustment	25 clicks
Front Spring Rate	100 N/mm
Rear Spring Rate	80 N/mm
Ride Height	Adjustable
Target Lowering	Approx. 25 mm front/rear
Adjustment Range	Approx. 10–35 mm
Front Top Mount	Aluminum spherical, adjustable camber
Rear Top Mount	Aluminum spherical, non-adjustable camber

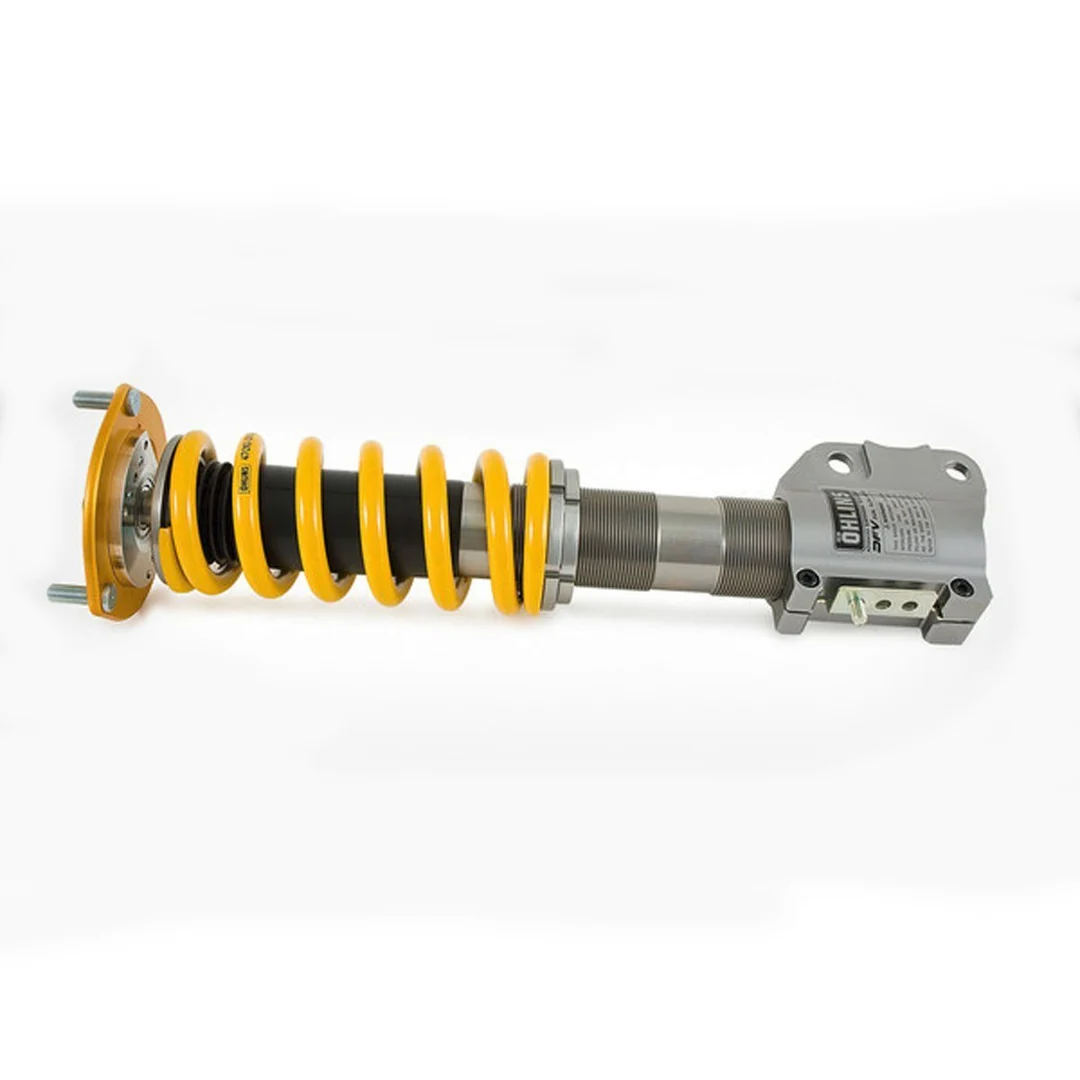

Front Design	Monotube inverted MacPherson strut

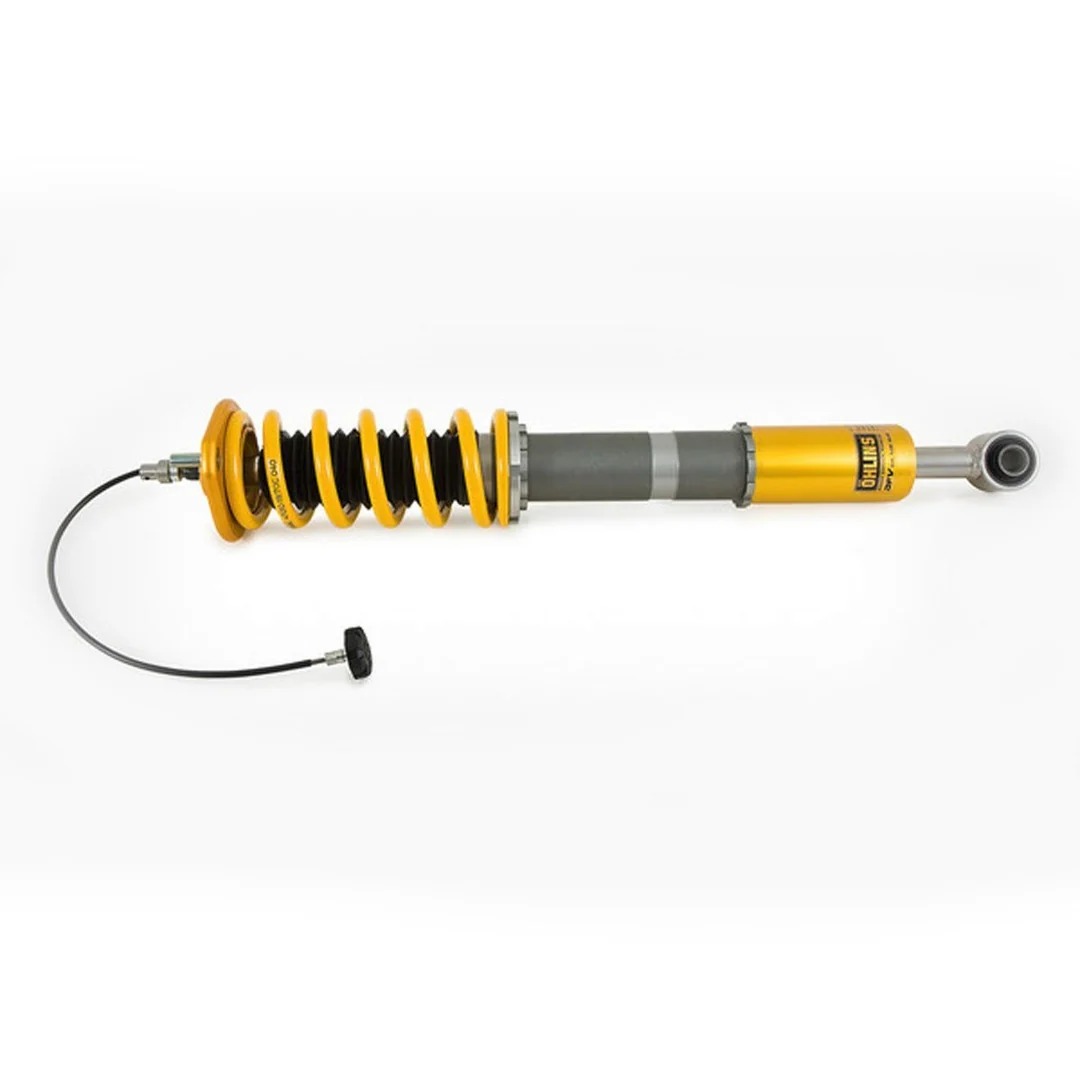

Rear Design	Aluminum monotube shock
Dampers	Rebuildable

Specifications are based primarily on current Öhlins product information for MIS MI10S1.

Öhlins DFV Technology

One of the defining features of the MIS Mi10S1 is Öhlins’ Dual Flow Valve technology. The DFV system is designed to allow the damper to react quickly to both larger suspension movements and smaller road imperfections.

For normal road driving, the damping can be adjusted toward a more comfortable setting. When the Evo X is being driven aggressively or used on track, the driver can increase damping stiffness using the adjustment control. Öhlins describes this system as providing a way to change the damper characteristics quickly when transitioning from road use to track driving.

This makes the Road & Track system particularly suitable for Evo X owners who use their cars for multiple purposes rather than building a suspension setup exclusively for competition.

Ride Height Adjustment

The MIS Mi10S1 provides independent ride-height adjustment, allowing the Evo X to be lowered without simply relying on spring preload to determine vehicle height.

Öhlins lists an approximate 10–35 mm lowering adjustment range for the front and rear and identifies approximately 25 mm front and rear as the target ride-height reduction with the recommended setup.

The final ride height should be selected according to wheel and tire combination, alignment requirements, road conditions, suspension travel, and intended vehicle use. Excessive lowering can affect suspension geometry and available travel, so the manufacturer’s recommended setup should be considered when installing and adjusting the kit.

Spring Rates and Suspension Setup

The MIS Mi10S1 uses application-specific spring rates of:

• Front: 100 N/mm
• Rear: 80 N/mm

These rates are part of the Evo X-specific Road & Track configuration.

The combination is intended to provide a controlled suspension response while retaining the versatility expected from a road-and-track coilover system. Because suspension behavior also depends on tires, alignment, sway bars, bushings, vehicle weight, and other modifications, the final setup should be adjusted as a complete vehicle system.

Front Adjustable Camber Mounts

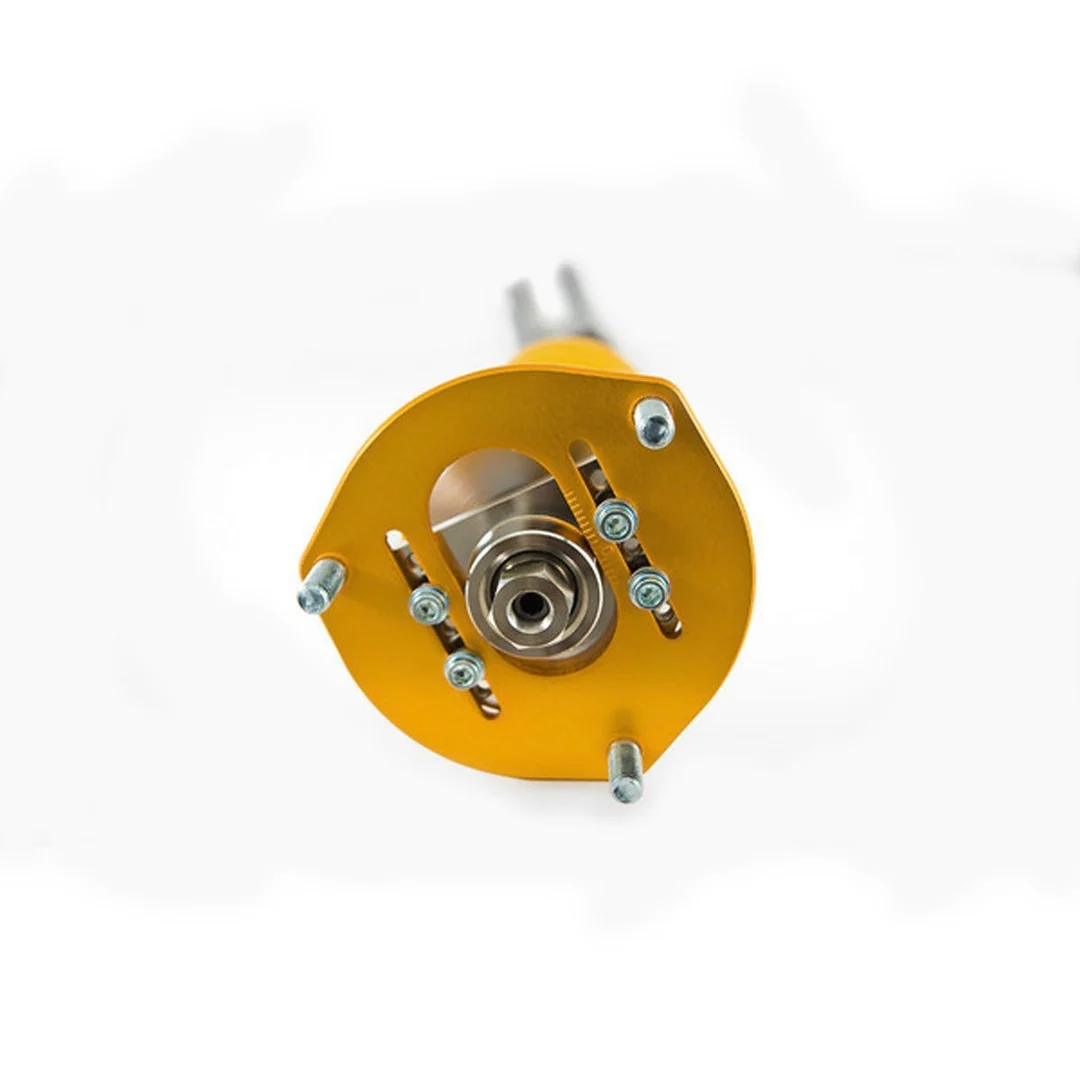

The front suspension assemblies include aluminum spherical upper mounts with adjustable camber. This allows the front suspension geometry to be tuned beyond the fixed factory mounting arrangement.

Adjustable front camber can be particularly useful on Evo X vehicles used for performance driving because the alignment can be tailored to the intended application. However, alignment specifications should be selected according to the vehicle’s tire setup and driving conditions rather than simply maximizing negative camber.

BUY Öhlins Evo X Coilovers MIS Mi10S1 for 2008–2015 Mitsubishi Evolution X, DFV damping, adjustable ride height, spherical mounts and 100/80 N/mm springs.

Vehicle Fitment

The Öhlins MIS MI10S1 is designed for the Mitsubishi Lancer Evolution X with CZ4A chassis.

Applicable model years commonly listed for this kit include:

• 2008 Mitsubishi Lancer Evolution X
• 2009 Mitsubishi Lancer Evolution X
• 2010 Mitsubishi Lancer Evolution X
• 2011 Mitsubishi Lancer Evolution X
• 2012 Mitsubishi Lancer Evolution X
• 2013 Mitsubishi Lancer Evolution X
• 2014 Mitsubishi Lancer Evolution X
• 2015 Mitsubishi Lancer Evolution X

Öhlins’ current listings identify MIS MI10S1 for Evo X applications, while the manufacturer’s broader Evo X documentation covers the CZ4A platform through the later model years. Verify your exact vehicle specification before ordering.

Installation

Professional installation is recommended.

Before installing the coilovers, inspect the vehicle’s existing suspension, mounts, control arms, bushings, brake lines, and related hardware. Installation should follow the current Öhlins mounting instructions and owner documentation.

After installation:

1. Set the ride height according to the intended application.
2. Verify adequate suspension and wheel clearance.
3. Check that brake lines and other components have sufficient clearance throughout suspension travel.
4. Set the damper adjustment to an appropriate starting position.
5. Perform a professional four-wheel alignment.
6. Recheck all mounting hardware after initial driving.

Öhlins specifically warns that the product is an important component of vehicle stability and recommends reading the owner documentation before installation and adjustment.

Package Includes

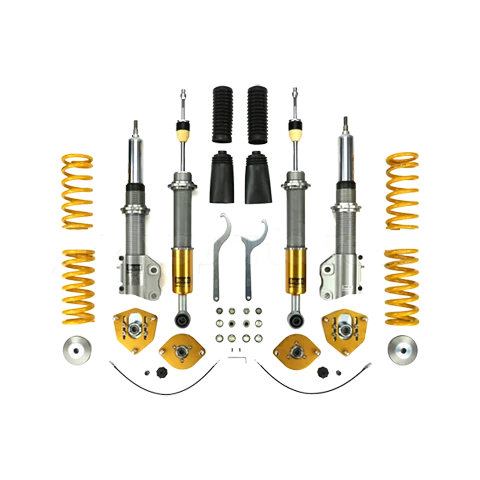

The MIS MI10S1 kit includes the application-specific coilover/damper assemblies, springs, upper mounting components, adjustment hardware, and installation-related components supplied by Öhlins. The manufacturer’s installation documentation lists components such as shock absorbers, dust boots, top mounts, springs, spacers, adjusters, lock nuts, and associated hardware.

Always check the package contents against the current Öhlins documentation when the kit is received.

Buy Öhlins Road & Track Coilovers for Evo X Online

If you are looking to buy Öhlins Road & Track coilovers for Mitsubishi Evo X, the MIS Mi10S1 provides a vehicle-specific suspension solution combining ride-height adjustment, damping control, DFV technology, and performance-oriented spring rates.

The kit is suitable for Evo X owners who want one suspension system that can be configured for daily road driving while also providing the adjustment and control needed for spirited driving and track days.

Shop the Öhlins Road & Track Coilover Kit MIS Mi10S1 through evomotorparts and order your Evo X suspension upgrade with worldwide shipping.

Frequently Asked Questions

What is Öhlins MIS Mi10S1?

MIS Mi10S1 is the Öhlins Road & Track DFV coilover/shock absorber kit designed for the Mitsubishi Lancer Evolution X CZ4A.

What are the spring rates?

The current Öhlins specification lists 100 N/mm front springs and 80 N/mm rear springs.

How much does the MIS Mi10S1 lower an Evo X?

Öhlins lists approximately 10–35 mm of lowering adjustment and approximately 25 mm front and rear as the target lowering with the recommended setup.

Does the kit include adjustable camber mounts?

Yes. The front assemblies include aluminum spherical upper mounts with adjustable camber. The rear top mounts are not camber adjustable.

Is the damping adjustable?

Yes. MIS Mi10S1 uses a 1-way adjustment system with 25 clicks of damping adjustment according to Öhlins’ current product specification.

Can the dampers be rebuilt?

Yes. Öhlins identifies the Road & Track dampers as rebuildable, allowing them to be serviced and customized when required.

Is this kit suitable for track use?

The Road & Track system is designed for both road and track applications. Öhlins specifically describes the system as providing adjustable control for track driving while retaining road-driving comfort.

Why Buy from evomotorparts.com?

• Quality Mitsubishi Evolution performance parts
• OEM and premium aftermarket components
• Performance-focused Evo suspension upgrades
• Competitive pricing
• Worldwide shipping
• Dedicated customer support for Mitsubishi Evolution enthusiasts

Conclusion

The Öhlins Road & Track Coilover Kit MIS Mi10S1 is a premium suspension upgrade designed specifically for the Mitsubishi Evolution X CZ4A. With DFV technology, 25-click damping adjustment, independent ride-height adjustment, rebuildable monotube dampers, spherical upper mounts, adjustable front camber, and Evo X-specific 100/80 N/mm spring rates, it provides a highly adjustable platform for both road and performance driving.

For Evo X owners upgrading their suspension, MIS Mi10S1 offers a combination of adjustability and application-specific engineering that can be configured around daily driving, spirited road use, or track-day requirements. Proper installation, ride-height setup, and professional alignment are essential to getting the most from the system.

BUY Öhlins Evo X Coilovers MIS Mi10S1 for 2008–2015 Mitsubishi Evolution X, DFV damping, adjustable ride height, spherical mounts and 100/80 N/mm springs.
