Evo X MAF Sensor Symptoms: Testing, Cleaning & Replacement
Diagnose an Evo X MAF problem before buying parts
A rough idle, hesitation or unexpected fuel trim does not automatically condemn the mass air flow sensor. Use a controlled inspection and data-led test sequence to separate a dirty sensing element, intake leak, wiring fault and genuine sensor failure.
Start with air leaks
Unmetered air after the MAF can imitate a bad sensor and distort fuel trims.
Compare live data
Look for believable, repeatable readings instead of judging one number in isolation.
Protect the tune
Do not change MAF housing diameter or calibration assumptions without tuner guidance.
What the Evo X MAF sensor actually does
The mass air flow sensor measures the air entering the engine through the intake tract. The ECU combines that signal with temperature, pressure, throttle and oxygen-sensor feedback to calculate load and fuel delivery. Because the MAF sits upstream of the turbocharger, every hose, clamp and connection between the sensor and compressor inlet matters.
A weak or implausible MAF signal can upset idle quality, throttle response and fuel trims. However, the same symptoms can come from a split intake coupler, loose clamp, contaminated air filter, damaged connector, failing oxygen sensor or a tune that does not match the intake hardware. Diagnosis should therefore begin with the complete metered-air path, not with a parts order.
Common Evo X MAF sensor symptoms
- Unstable or hunting idle, especially after intake work.
- Hesitation, flat response or surging during light acceleration.
- Fuel trims that remain unusually positive or negative after warm-up.
- Poor starting, rich exhaust smell or increased fuel use.
- A check-engine light with an airflow, mixture or plausibility code.
- A problem that changes when the MAF connector or intake tube is moved.
These are clues, not proof. Record codes and freeze-frame data before clearing anything. A stored airflow code can point to the circuit, while a lean code may still originate from an intake leak. If the car is heavily modified, compare observations with the calibration strategy supplied by the tuner.

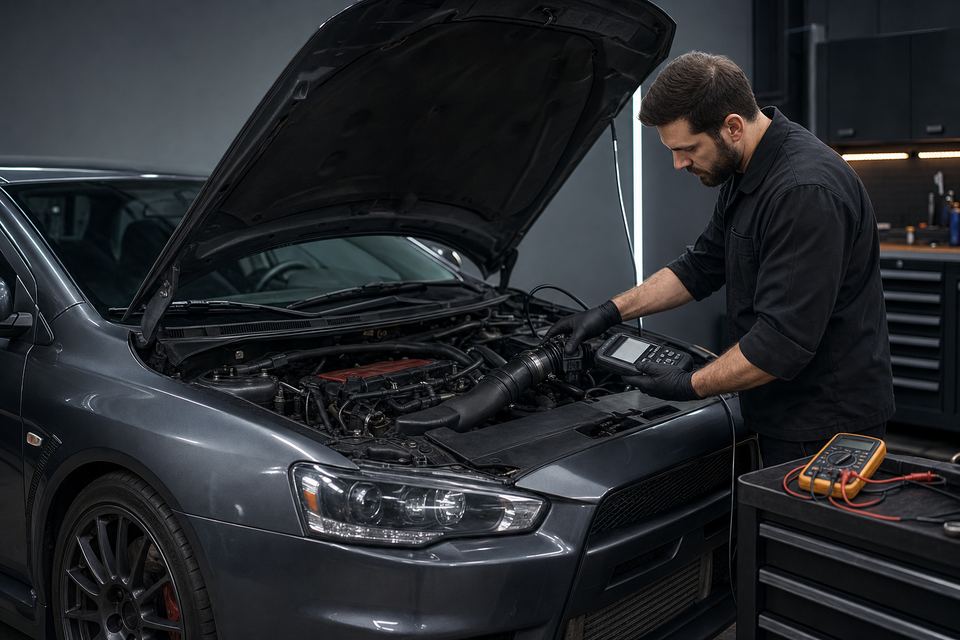

A practical testing sequence
1. Read codes and preserve evidence
Scan the ECU before disturbing connectors. Note pending and confirmed codes, coolant temperature, fuel trims and the conditions recorded in freeze-frame data. This prevents a useful clue from disappearing after a battery disconnect or code clear.
2. Inspect the complete intake path
Check the air filter, airbox, MAF housing, O-ring, clamps and turbo-inlet hose. Look for cracks underneath flexible hoses, oil saturation, loose fasteners and evidence that the sensor is not seated evenly. A smoke test is safer and more convincing than spraying flammable fluid around a running engine.
3. Check the connector and harness
With the ignition off, inspect the plug for corrosion, bent pins, moisture, stretched wiring or a loose lock. If electrical testing is required, follow the factory service information for terminal identification and voltage ranges. Do not assume wire colors or pin positions.
4. Review live airflow behavior
Warm the engine and observe MAF response at idle and during a smooth, controlled increase in rpm. The reading should change cleanly rather than freeze, drop out or spike randomly. Compare the result with vehicle configuration, altitude and tuner guidance; a universal grams-per-second target can mislead on modified cars.
5. Confirm the repair
After correcting the verified fault, clear codes only when appropriate, allow the ECU to relearn and repeat the same test route. Confirm that trims, idle quality and throttle response improve without introducing a new leak or warning light.
Can you clean an Evo X MAF sensor?
Cleaning can help when the sensing element has a light film of dust or oil, but it cannot repair failed electronics or damaged wiring. Remove the sensor only with the ignition off and the correct tool. Use a cleaner specifically labeled for mass air flow sensors. Do not use brake cleaner, carburetor cleaner, compressed air, cotton swabs or a brush.
Spray the sensing area without touching it, then allow it to air-dry completely before refitting. Inspect the seal at the same time. The live Mitsubishi OEM Evo X MAF sensor O-ring (MN137122) is the relevant sealing component if the original is flattened, torn or missing. A new sensor fitted with a leaking seal can still produce confusing data.
When replacement makes sense
Replacement is justified when wiring, power, ground, intake sealing and calibration have been checked, cleaning does not restore credible behavior, and testing consistently points to the sensor. Evo Motor Parts lists the Mitsubishi Mass Air Flow Sensor for Evo X as a live, in-stock electronics and sensors item. Verify the exact vehicle, connector and calibration requirements before ordering.
If the physical housing is cracked, distorted or no longer seals correctly, review the Mitsubishi OEM MAF housing for Evo X (1500A219). Do not treat a different housing diameter as a cosmetic change. Airflow scaling depends on the housing and tune, so an aftermarket intake or non-standard diameter should be approved by the tuner.
Installation checks that prevent a repeat fault
- Transfer or replace the seal without pinching it.
- Orient the sensor and airflow path exactly as designed.
- Tighten small fasteners evenly; do not crush plastic mounting ears.
- Seat the connector until the lock engages, then support the harness.
- Inspect every clamp disturbed during access.
- Keep oiled filter residue and cleaning chemicals away from the sensing element.
Before the first hard pull, start the engine and listen for leaks. Confirm a stable idle, normal warning-light behavior and clean live data. Modified vehicles should be validated by the tuner before boost testing.
MAF sensor or MAP sensor?
The Evo X uses different sensors for different jobs. The MAF measures incoming air in the intake tract, while the manifold absolute pressure sensor reports pressure in the intake manifold. Their signals interact in engine-load calculations, but they are not interchangeable. A previous Evo X MAP sensor location guide explains the manifold-pressure side. Keeping the two systems separate avoids replacing the wrong part.
Build the repair around evidence
Inspect sealing, wiring and live data first. Then choose the matching sensor, seal or housing for the verified fault and confirm fitment for your exact Evo X setup.
